High Temperature Resistant Centrifugal Pump Installer

Special stainless steel magnetic pump for lye(Alkali)

CQB-P stainless steel magnetic pump, can be made of SS304,SS316,SS316L and other stainless steel materials, used in pharmaceutical and chemical industry, can transport sulfuric acid, nitric acid, hydrochloric acid and other corrosive liquids, can withstand 200 degrees Celsius high temperature.
  • item no.:

    CQB-P-0001
  • lead time:

    7-10 dyas
  • product orgin:

    Anhui Tenglong pump valve manufacturing co., Ltd
  • shipping port:

    Any port in China, chiefly Shanghai
  • payment:

    L/C or T/T
  • color:

    Customer color
  • description

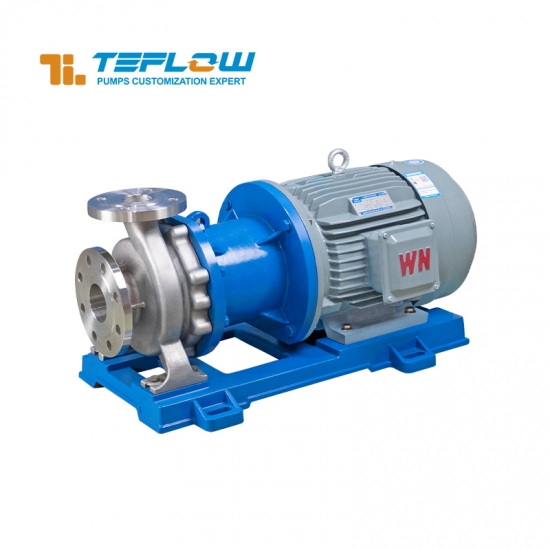

Special stainless steel magnetic pump for lye(Alkali)

CQB-P stainless steel magnetic pump, suitable for any temperature and concentration of acid and alkali solution, corrosion and high temperature resistance, is an ideal solution for the chemical industry.
Anhui Tenglong stainless steel magnetic pump main parameters:
Product classification: stainless steel magnetic pump.

  • Material: SS304-SS316-SS316L.
  • Flow: 3.6m³/ h-100m³/ h.
  • Head: 15 m-80 m.

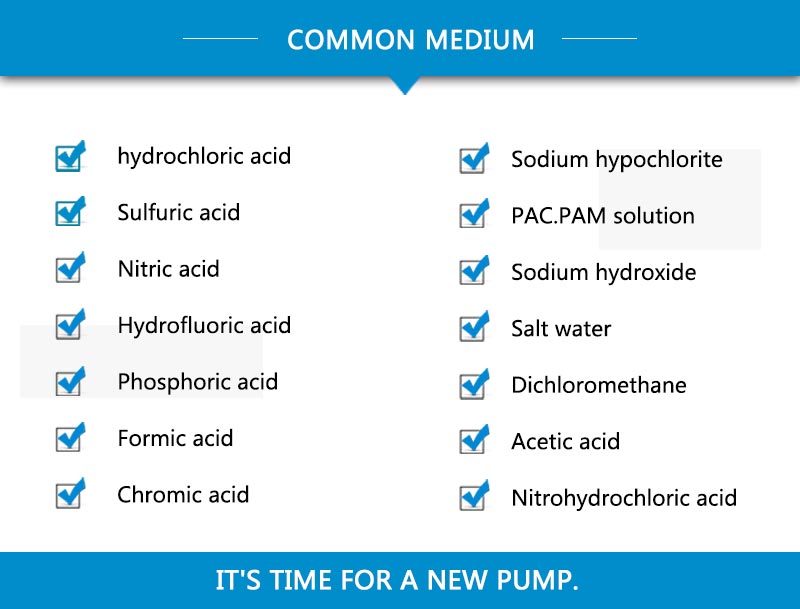

  • Suitable medium: Lye,Alkali, organic solvent, pharmaceutical intermediate.
  • Features: ultra-long life, maintenance-free.

Our company can according to the actual working conditions, choose different configurations, to provide accurate solutions. For technical advice, please call the Service Hotline: + 86 (0086) 1813 0250095/E-mail: tlpumps@tlpumps.com

Click here,The professional engineer will help you solve the problem.

Click here to get quotations and technical information immediately.














Request a free quote

related products
  • sewage electric centrifugal pump ZW self-priming sewage pump

    ZW self-priming sewage pump is a new generation of pump, which can not only do not need to install the bottom valve and irrigation water, but also absorb and drain large solid particles and long fiber impurities, and integrate self-priming and non-clogging sewerage into a new type of pump products. The ZW large flow self-priming sewage pump adopts the impeller of unique design and the mixed type of axial return flow, and can completely replace the WQ and QW submersible sewage pumps in the series of sewage pumps. The utility model has the advantages of good self-priming (the self-priming height can reach 5 m), high efficiency and energy saving, simple structure, strong draining force and convenient maintenance, etc.

  • PW-F magnetic pump PW-F magnetic drive pump

    PW-F magnetic pump is composed of pump, magnetic actuator and motor. The key component of the magnetic actuator is composed of an external magnetic rotor, an internal magnetic rotor and an isolation sleeve without magnetic conductivity. When the motor drives the external magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic material, drive the internal magnetic rotor connected with the impeller to rotate synchronously, realize the non-contact transmission of the power, and transform the dynamic seal into the static seal. Because the pump shaft and the inner magnetic rotor are completely closed by the pump body and the isolating sleeve, the problem of "running, rising, dropping and leaking" is solved thoroughly, and the hidden danger of the flammable, explosive, poisonous and harmful medium leakage through the pump seal in the oil refining and chemical industry is eliminated.

  • GDF Fluoroplastic Vertical Pipe pump GDF fluorine plastic Pipe pump

    GDF fluorine plastic vertical pipe pump, according to the international standard design, the overflowing parts adopt perfluoroplastics, the load bearing parts of the pump are metal materials, vertical design, small area, import and export in the same horizontal line, can be used for limited space, And linear lines.
