CQB-F Fluoroplastics Chemical feed Magnetic pump

Fluorine plastic magnetic pump and called it the fluorine plastic magnetic centrifugal pump, four fluorine, fluorine plastic magnetic drive pump, magnetic pump corrosion resistant magnetic chemical pump.
  • item no.:

    CQB-F-0001
  • lead time:

    Customer date
  • product orgin:

    Anhui Tenglong pump valve manufacturing co., Ltd
  • shipping port:

    Shanghai China
  • payment:

    L/C or T/T
  • color:

    Customer color
  • description

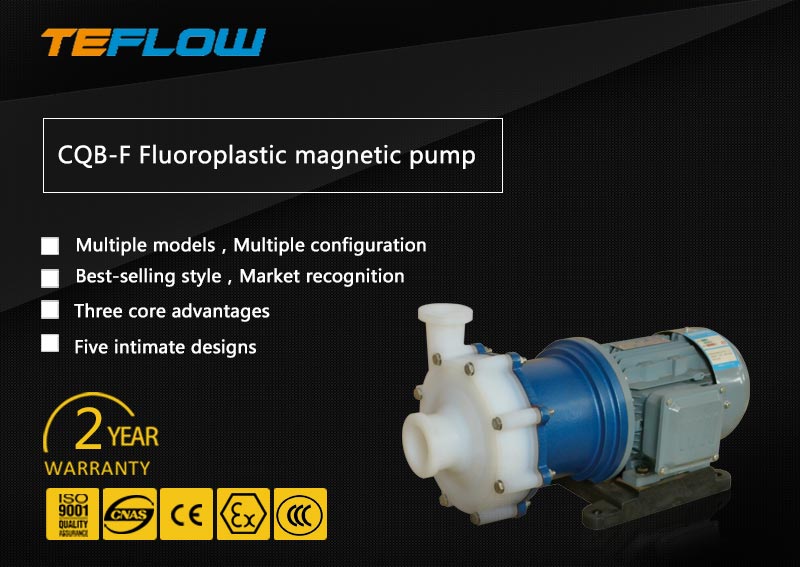

CQB-F Fluoroplastics Chemical feed Magnetic pump

The CQB F fluoroplastic magnetic pump is a very classic model in our company.
Used in electroplating wastewater, acid cleaning and polishing, pharmaceutical pesticide, iron and steel metallurgy

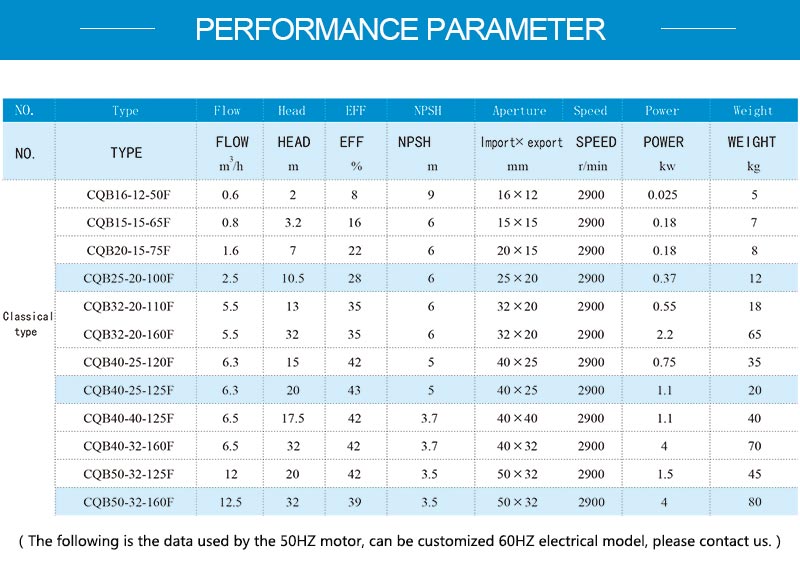

Anhui Tenglong pump valve fluorine plastic magnetic pump main parameters:


  • Flow: 0.6m³/h-100m³/h(600L/h-100000L/h)
  • Head: 2m-50m(0.2bar-5bar)
  • Power: 0.025kw-18.5kw(0.03HP-25HP)
  • Service temperature: -20℃—150℃

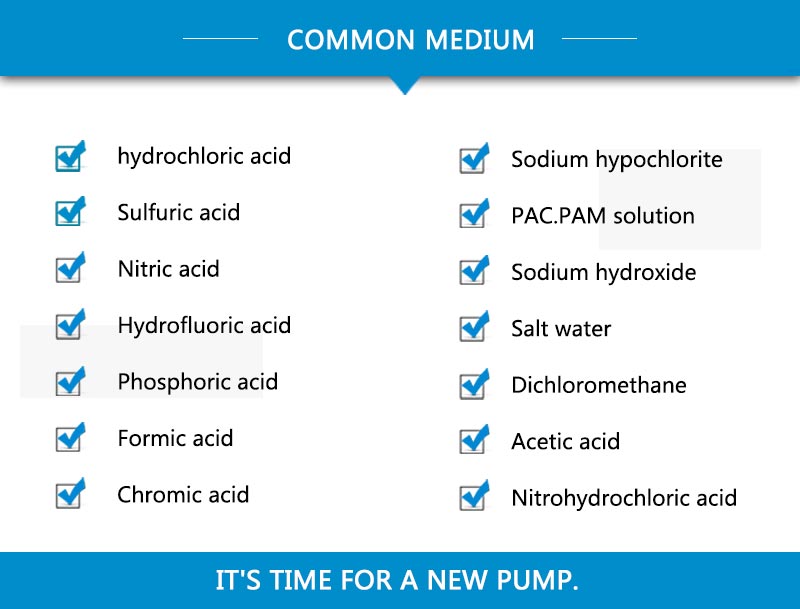

  • Applicable medium: any concentration of acid, alkali, salt, organic solvents, etc.


Our company can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please dial the service hotline: +86(0086)18130250095     E-mail: tlpumps@tlpumps.com
