High Temperature Resistant Centrifugal Pump Installer

IMD-F heavy duty fluorine plastic magnetic pump

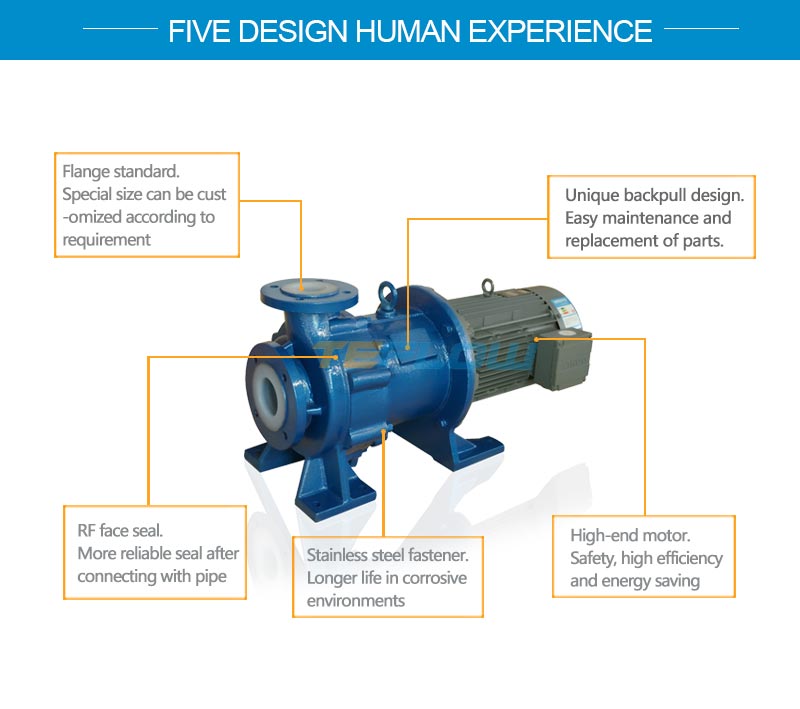

Fluorine plastic magnetic pump is also known as fluorine plastic magnetic centrifugal pump, tetrafluorine, fluorine plastic magnetic pump, magnetic pump corrosion resistant magnetic chemical pump. IMD-F adopts international advanced design concept, completely eliminates magnetic eddy current, product high efficiency and energy saving, adopts rear pull structure, There is no need to disassemble the pipe, which is convenient for daily maintenance and maintenance.
  • item no.:

    IMD-F-0001
  • lead time:

    Customer date
  • product orgin:

    Anhui Tenglong pump valve manufacturing co., Ltd
  • shipping port:

    Shanghai China
  • payment:

    L/C or T/T
  • color:

    Customer color
  • Lining plastic:

    PTFE / FEP / PVDF / PFA
  • Use:

    H2SO4 / HCL / HNO3 / NaOH / HF / CH3COOH
  • description

IMD-F heavy duty fluoroplastic magnetic pump

IMD-F heavy magnetic pump is suitable for the transportation of strong corrosive substances such as chlor-alkali, chlorobenzene, aluminum foil, pickling, pesticide and so on.

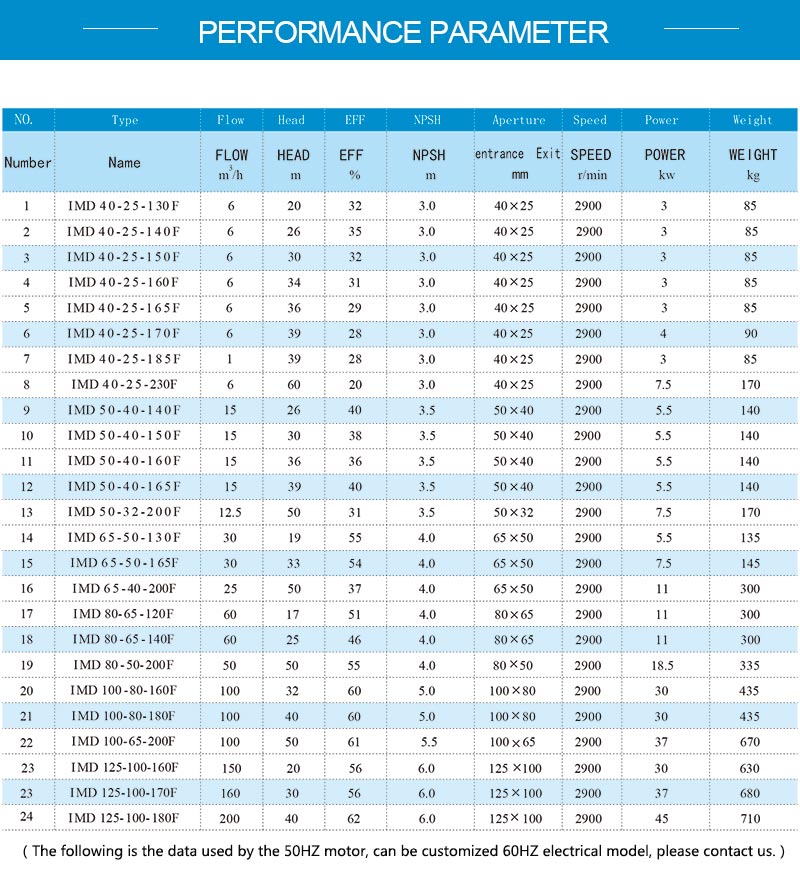

Anhui Tenglong pump valve fluorine plastic magnetic pump main parameters:

  • Flow: 1m³/ h - 200m³/ h(1000L / h-200000L / h)
  • Head: 5 m-50 m (0.5 bar-5 bar).
  • Power: 1.1kW-55kW (2HP-75HP).

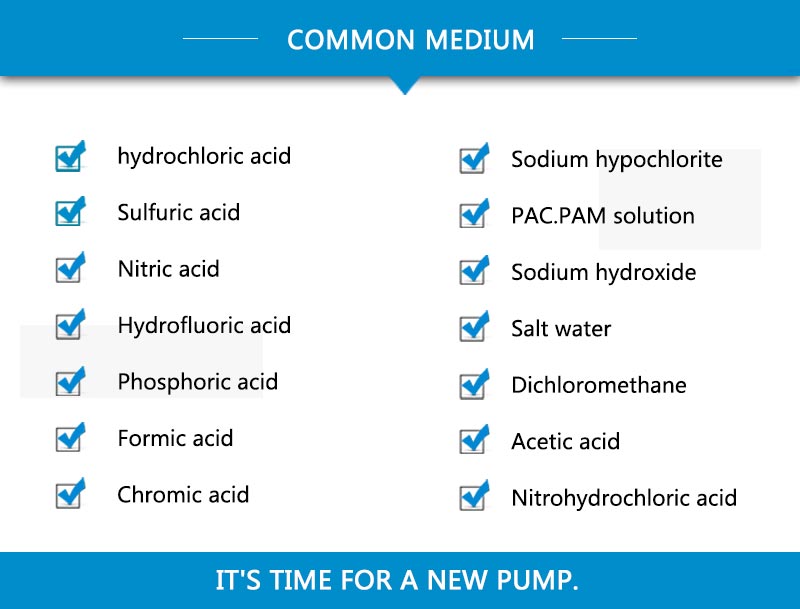

  • Suitable medium: any concentration of acid, alkali, salt, organic solvent, etc.
  • Operating temperature:-20 ℃ to 180 ℃.
Our company can according to the actual working conditions, choose different configurations, to provide accurate solutions. For technical advice, please call the Service Hotline:


 + 86 (0086) 1813 0250095/E-mail:tlpumps@tlpumps.com

IMD-F Fluorine plastic magnetic pump



IMD-F Fluorine plastic magnetic pump

Fluorine plastic magnetic pump

Fluorine plastic magnetic pump

Fluorine plastic magnetic pump
