Sulphuric acid special TMF magnetic pump

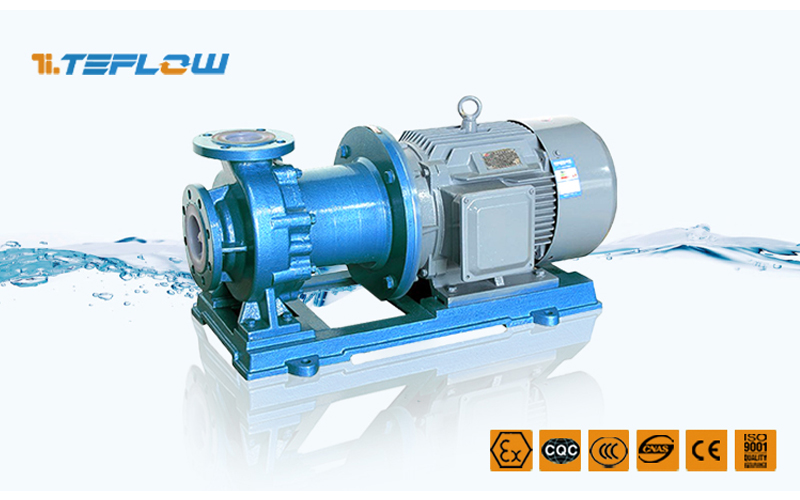

TMF fluorine plastic magnetic pump, made of HT200 steel lining corrosion-resistant plastic, is specialized in the transportation and transmission of all kinds of acids. it is an ideal choice for all kinds of acid liquid projects.
  • item no.:

    TMF-0001
  • lead time:

    7-10 dyas
  • product orgin:

    Anhui Tenglong pump valve manufacturing co., Ltd
  • shipping port:

    Any port in China
  • payment:

    L/C or T/T
  • color:

    Customer color
  • Lining plastic:

    PTFE / FEP / PVDF / PFA
  • Use:

    H2SO4 / HCL / HNO3 / NaOH / HF / CH3COOH
  • description

TMF fluorine plastic magnetic pump, made of HT200 steel lining corrosion-resistant plastic, specializing in the transportation and transportation of all kinds of acid. It is ideal for a variety of acidic liquid projects.The products are made according to CE,ISO9001 standard and can be customized to ANSI flange standard.

TEFLOW brand fluoroplastic magnetic pump main parameters:

  • Flow: 1.6m³/ h - 200m³/ h(1600L/h-200000L/h).
  • Head: 5 m-80 m (0.5bar-8bar).
  • Power: 1.5kW-55kW (2HP-75HP).
  • Suitable medium: any concentration of sulfuric acid, alkali, salt, organic solvent, etc.
  • Lining material: PTFE,FEP,PVDF,PP,PFA,TEFLON.
  • Operating temperature:-20 ℃ to 150 ℃ medium density: 1.8 or lower.

Our company can according to the actual working conditions, choose different configurations, to provide accurate solutions. For technical advice, please call the Service Hotline: + 86 (0086) 1813 0250095 E-mail:tlpumps@tlpumps.com

Click here,The professional engineer will help you solve the problem.

Anhui Tenglong Valve Manufacturing Co.,Ltd.

TMF Fluorine plastic magnetic pump

TMF Fluorine plastic magnetic pump

TMF Fluorine plastic magnetic pump

TMF Fluorine plastic magnetic pumpTMF Fluorine plastic magnetic pump



TMF Fluorine plastic magnetic pump

TMF series can be customized according to specific working conditions.

  • 1. High temperature-G, 180 degrees Celsius.
  • 2. Alkali type-J, transportation of alkaline liquid.
  • 3. Granular-K, transport of 10% particulate matter.
  • For other special requirements, please contact us.

Click here to get quotations and technical information immediately.

TMF Fluorine plastic magnetic pump



TMF Fluorine plastic magnetic pump

TMF Fluorine plastic magnetic pump

Anhui Tenglong Valve Manufacturing Co.,Ltd.

Anhui Tenglong Valve Manufacturing Co.,Ltd.

Anhui Tenglong Valve Manufacturing Co.,Ltd.
