High Temperature Resistant Centrifugal Pump Installer

UHB-ZK wear-resistant and corrosion resistant mortar pump

UHB-ZK series mortar pump adopts semi-open polymer impeller, lined with plastic layer of not less than 8mm, can be equipped with double-face circulating water machine seal, very wear-resistant, can be used for a variety of acid-base liquids containing particles and impurities.
  • item no.:

  • lead time:

    Customer date
  • product orgin:

    Anhui Tenglong pump and valve manufacturing co., L
  • shipping port:

    Shanghai China
  • payment:

    L/C or T/T
  • color:

    Customer color
  • Lining plastic:

  • Use:

    H2SO4 / HCL / HNO3 / NaOH / HF / CH3COOH
  • description

UHB-ZK series mortar pump is the only acid-base liquid unloading centrifugal pump containing impurities and particles in our company. it is widely used in phosphoric acid slurry, fluorosilicic acid containing silica gel, mother liquor, zinc and lead, gold, silver, copper, manganese, cobalt, rare earth and other industries such as corrosive slurry electrolyte and sewage with impurities.

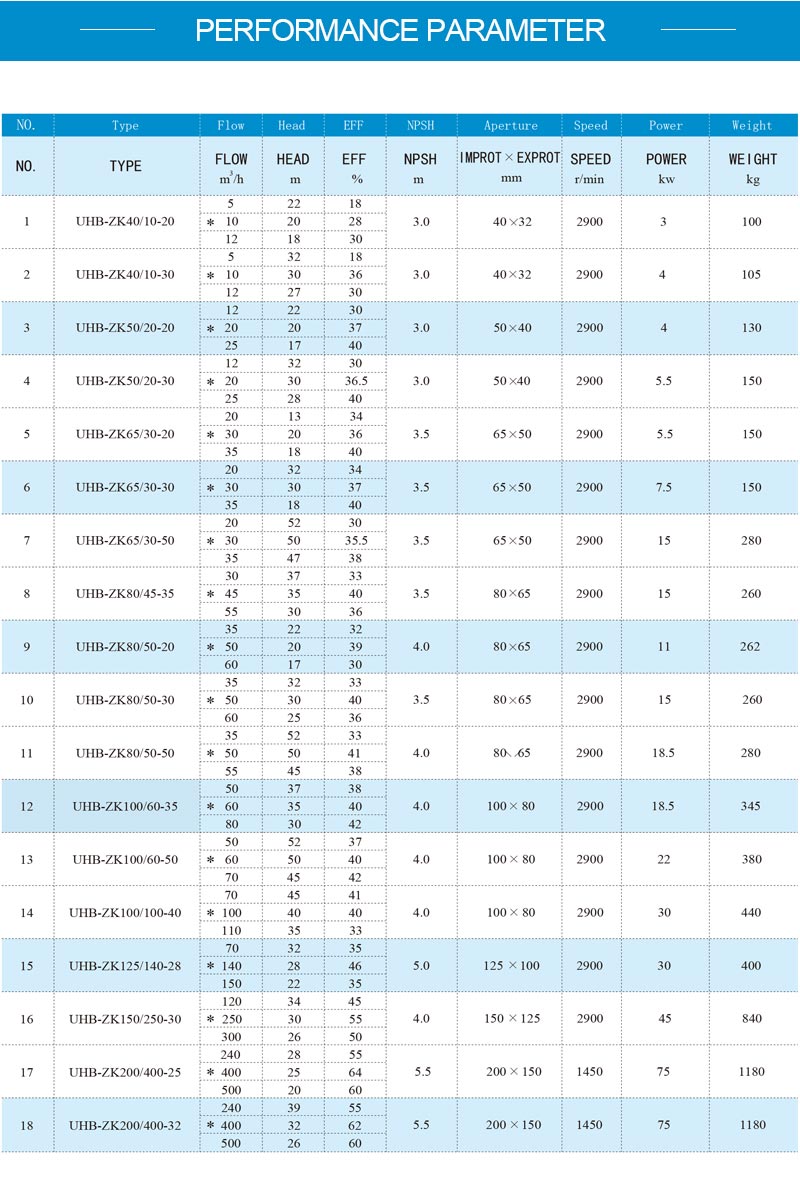

UHB-ZK series mortar pump main parameters:

  • Flow : 5 m³/h - 1920 m³/h (5000L/h-1920000L/h)
  • Head: 20 m - 50 m(2bar-5bar)
  • Power: 3 kw - 400 kw(4HP-550HP)
  • Applicable medium: any concentration of acid, alkali, salt, organic solvents, etc.(Can contain small amount of impurities and hard particles)
  • Operating temperature: - 20 ℃ to 150 ℃ medium density: 1.8 or less.

Our company can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please dial the service hotline: +86(0086)18130250095    E-mail: [email protected]

Click here,The professional engineer will help you solve the problem.

UHB-ZK series mud pumps can be made of ultra-high molecular weight polyethylene, ceramics, silicon carbide, stainless steel alloy and so on.

For other special requirements, please contact us.

Click here to get quotations and technical information immediately.

Request a free quote
