High Temperature Resistant Centrifugal Pump Installer

ISW Series Horizontal Single stage cast iron, stainless steel Centrifugal water Pump

ISW horizontal clean water pump, ideal choice for conveying clean water and physicochemical properties similar to clear water.
  • item no.:

    ISW-0001
  • lead time:

    7-10 dyas
  • product orgin:

    China
  • shipping port:

    Any port in China, chiefly Shanghai
  • payment:

    T/T L/C
  • price range:

    1-500/500$
  • color:

    Customer color
  • description

ISW horizontal clean water pump for the transport of clear water and other liquids with physical and chemical properties similar to clear water, Suitable for industrial and urban water supply and drainage, high-rise building pressurization water supply, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment matching, use temperature 0℃-200℃.

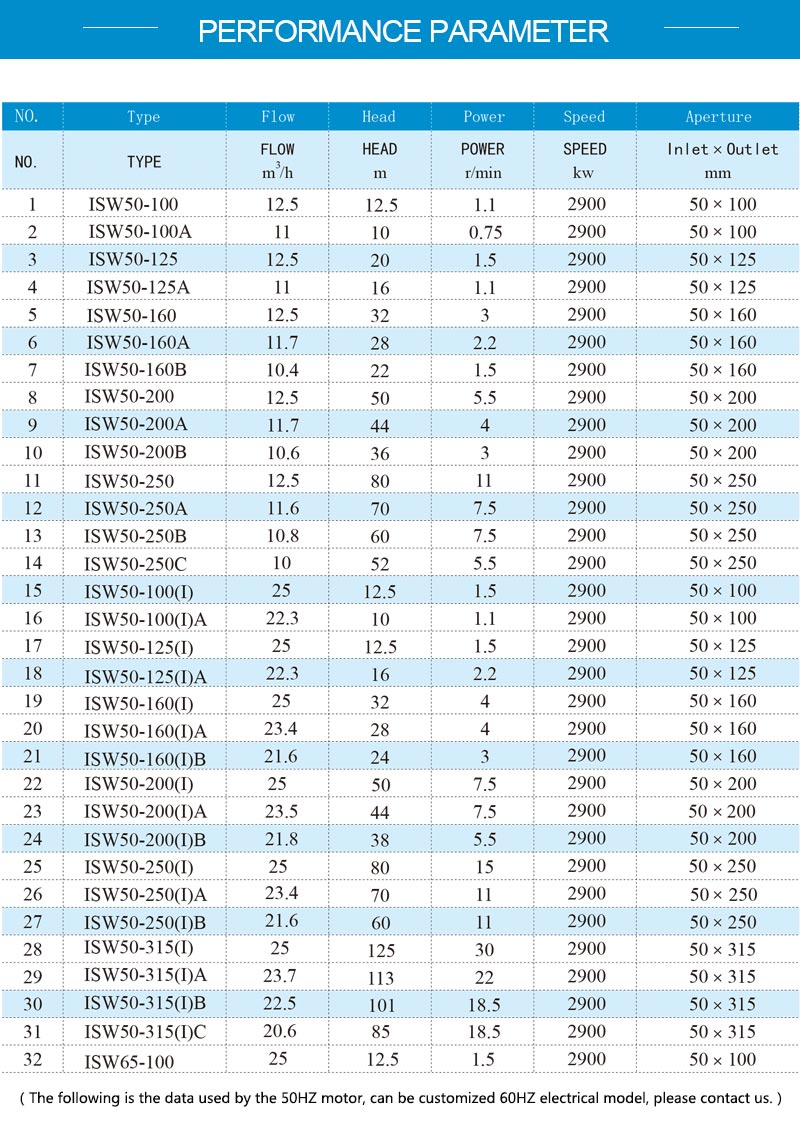

Main parameters of ISW horizontal centrifugal water pump(TEFLOW)

  • Flow:3.6m³/H-800m³/H(3600L/H-800000L/H)
  • Head:12.5M-150M(1.25bar-15bar)
  • Power:0.75KW-160KW(1HP-215HP)
  • Applicable medium:Clean water, sewage, sea water, domestic water
  • Pump body material:Cast iron, SS304,SS316,SS316L

Can change the configuration according to the actual working condition, please consult my company sales department for details:+86(0086)18130250095    E-mail:tlpumps@tlpumps.com

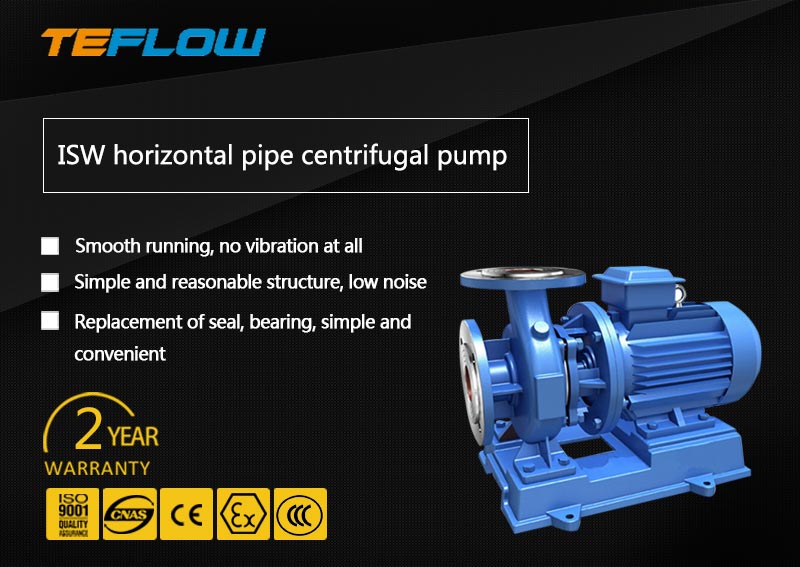

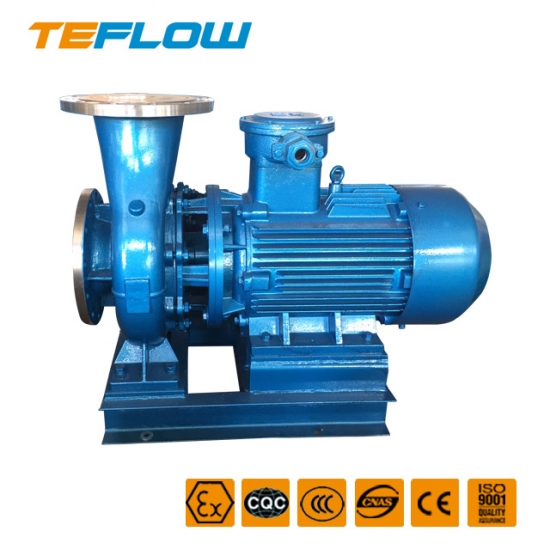

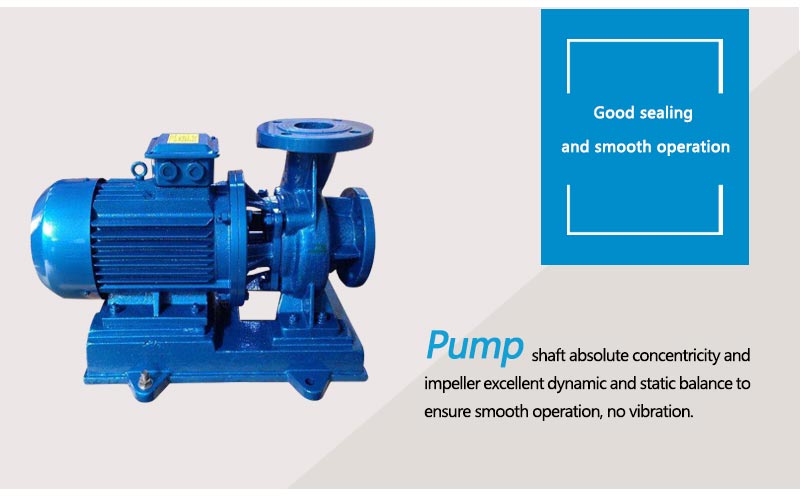

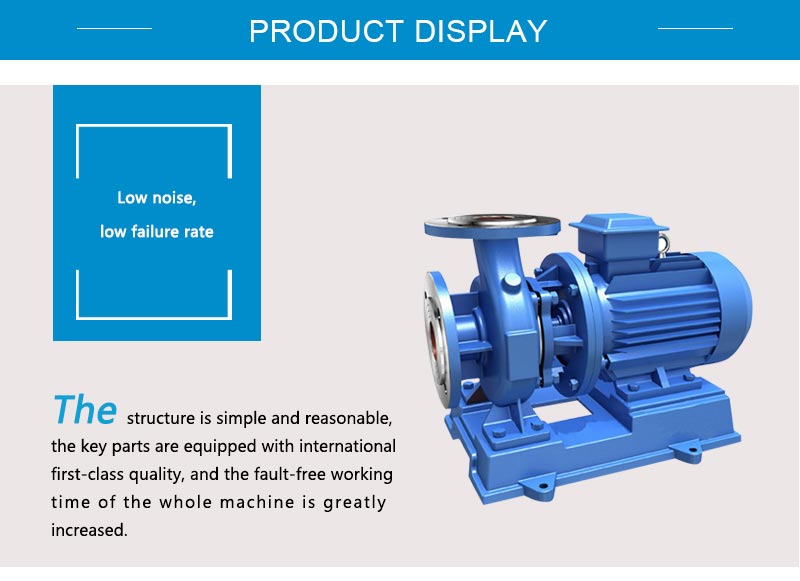

ISW centrifugal pump


ISW centrifugal pump

ISW centrifugal pump

ISW centrifugal pump

ISW centrifugal pumpISW centrifugal pump
