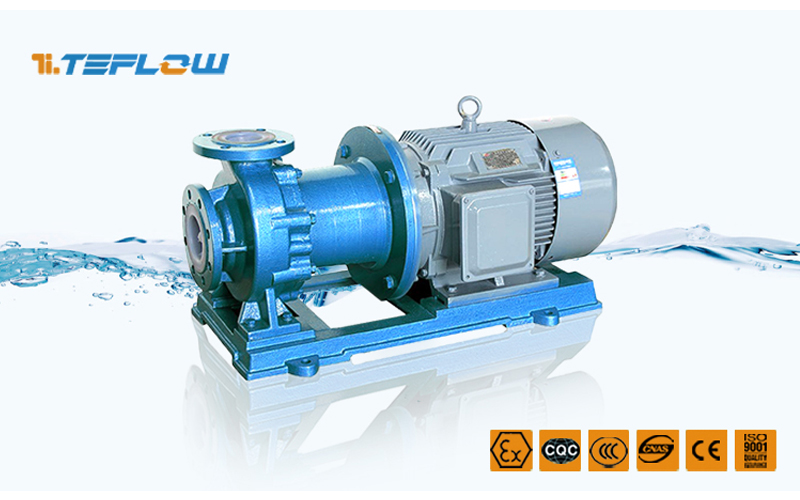

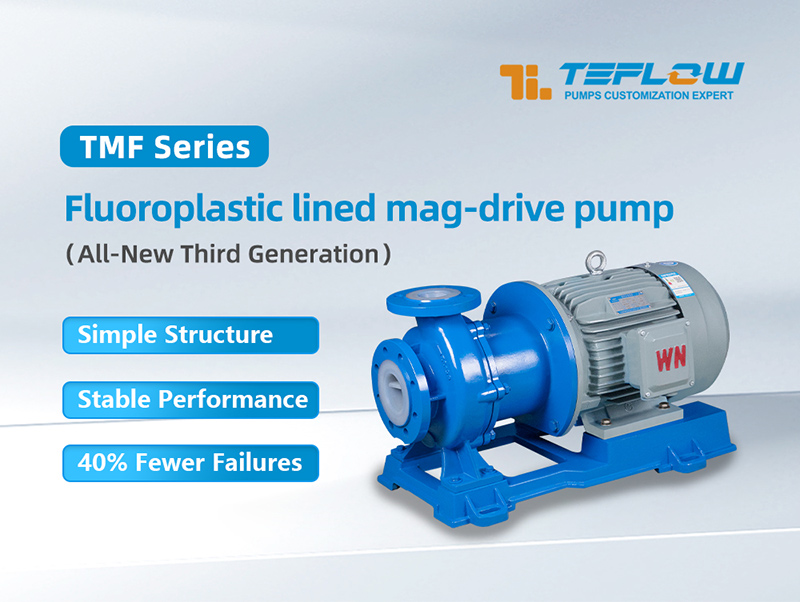

TMF- magnetic circulating caustic soda pump

TMF- magnetic circulating caustic soda pump -Specially used for the transportation of various concentrations of sodium hydroxide solution, no shaft seal, good sealing, wetting parts made of PTFE material.
  • item no.:

    TMF
  • lead time:

    Customer date
  • product orgin:

    Anhui Tenglong pump and valve manufacturing co., L
  • shipping port:

    Shanghai China
  • payment:

    L/C or T/T
  • color:

    Customer color
  • Lining plastic:

    PTFE / FEP / PVDF / PFA
  • Use:

    H2SO4 / HCL / HNO3 / NaOH / HF / CH3COOH
  • description

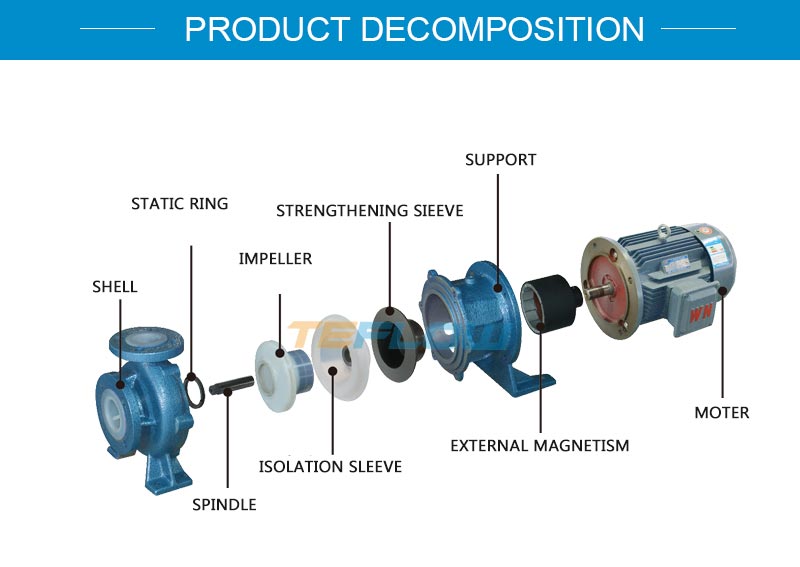

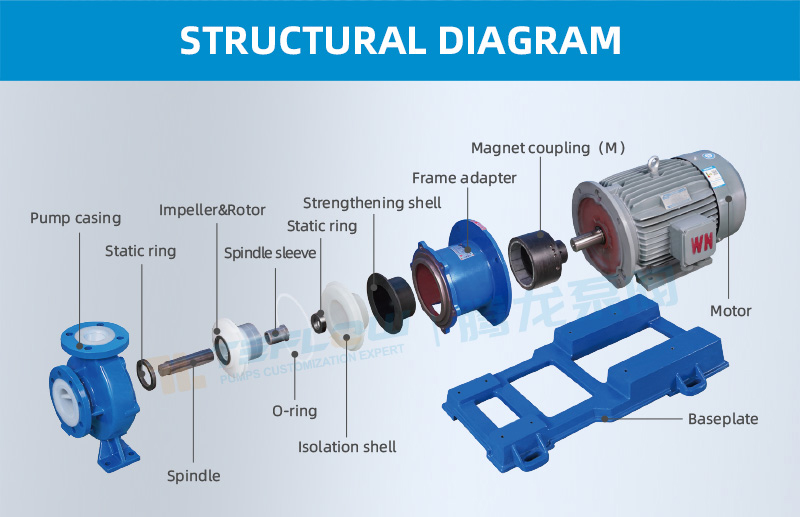

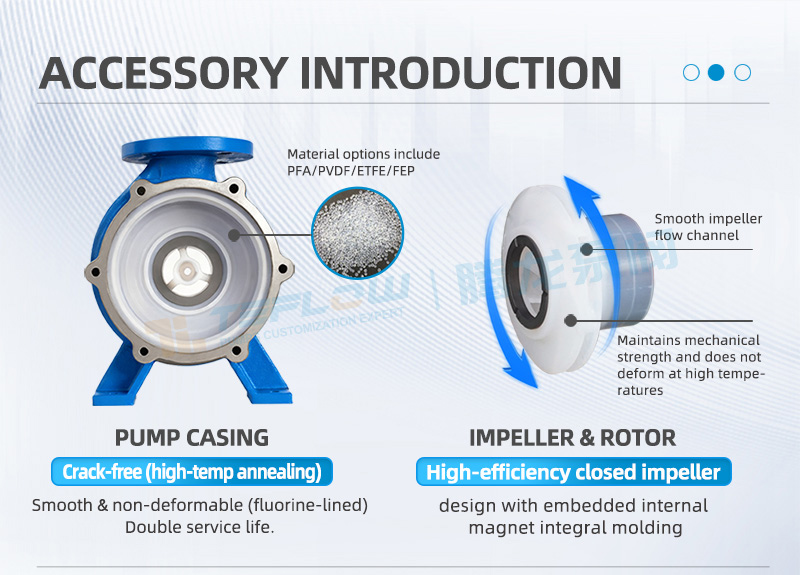

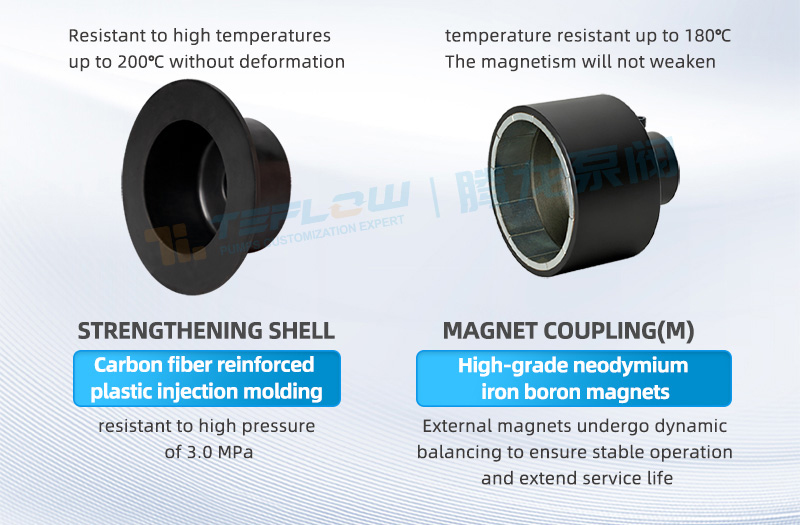

TMF- magnetic circulating caustic soda pump-No mechanical seal and coupling, no shaft seal, good sealing, made of sintered silicon carbide and PTFE or PFA material, can be customized to ASME B16.5 and JIS 10K flange standards, CE certification and ISO9001 certification.

Anhui Tenglong pump and valve teflon lined mag drive pump main parameters:

  • Flow : 1.6 m³/h - 200 m³/h (1600L/h-200000L/h)
  • Head: 5 m - 80 m(0.5bar-8bar)
  • Power: 1.5 kw - 55 kw(2HP-75HP)
  • Applicable medium: any concentration of acid, alkali, salt, organic solvents, etc.
  • Operating temperature: - 20 ℃ to 150 ℃ medium density: 1.8 or less.

Our company can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please dial the service hotline: +86(0086)18130250095    E-mail: [email protected]

Click here,The professional engineer will help you solve the problem.

teflon lined mag drive pump


teflon lined mag drive pump

teflon lined mag drive pumpteflon lined mag drive pump

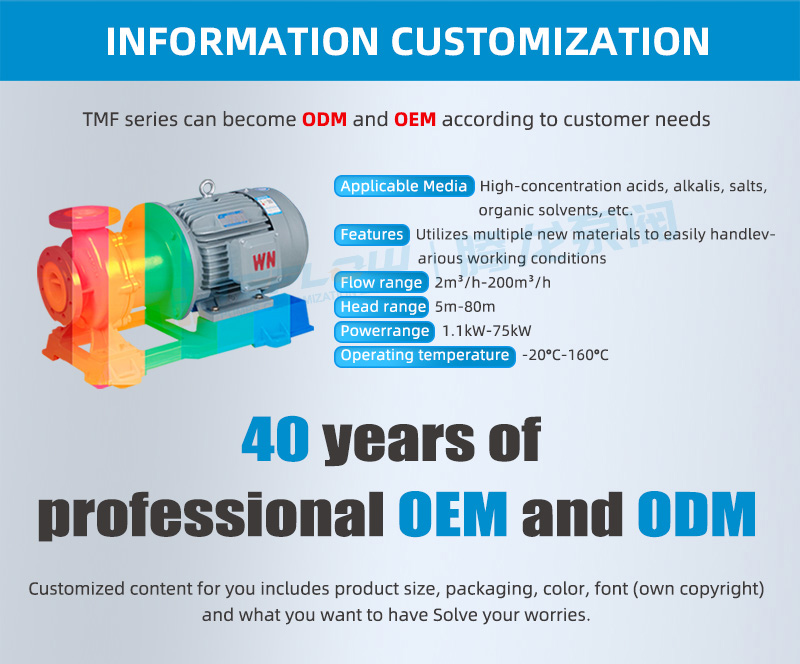

TMF series can be customized according to specific working conditions.

  • 1.High temperature type-G, High temperature 180 degrees Celsius.
  • 2.Lye type-J, Transportation of alkaline liquid.
  • 3.Granular type-K, Transport 10% particulate matter.

For other special requirements, please contact us.

Click here to get quotations and technical information immediately.

teflon lined mag drive pump
