High Temperature Resistant Centrifugal Pump Installer

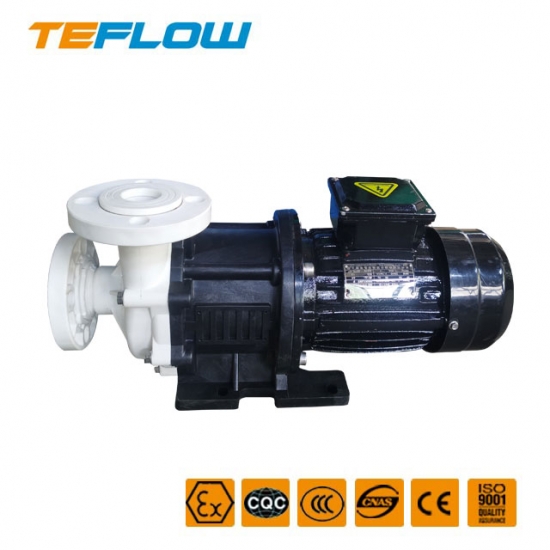

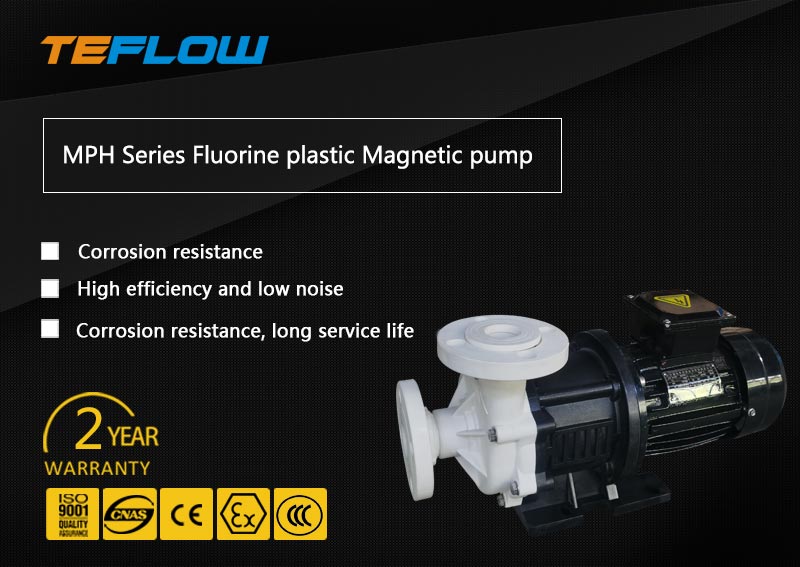

MPH- seamless magnetic drive pump

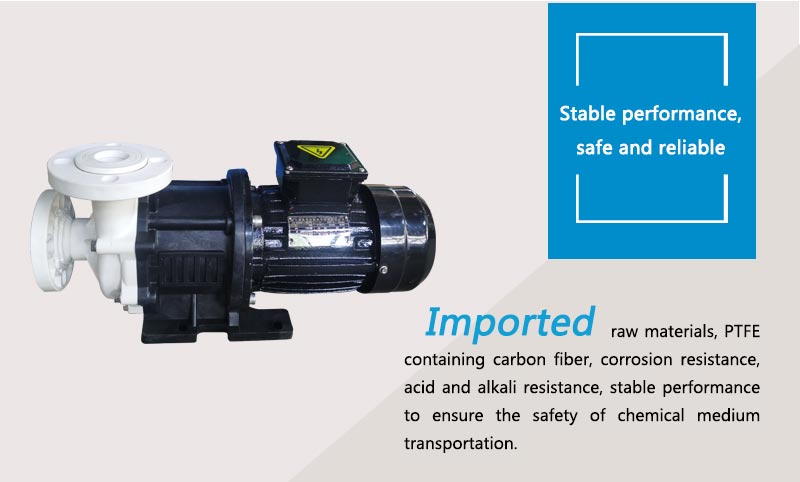

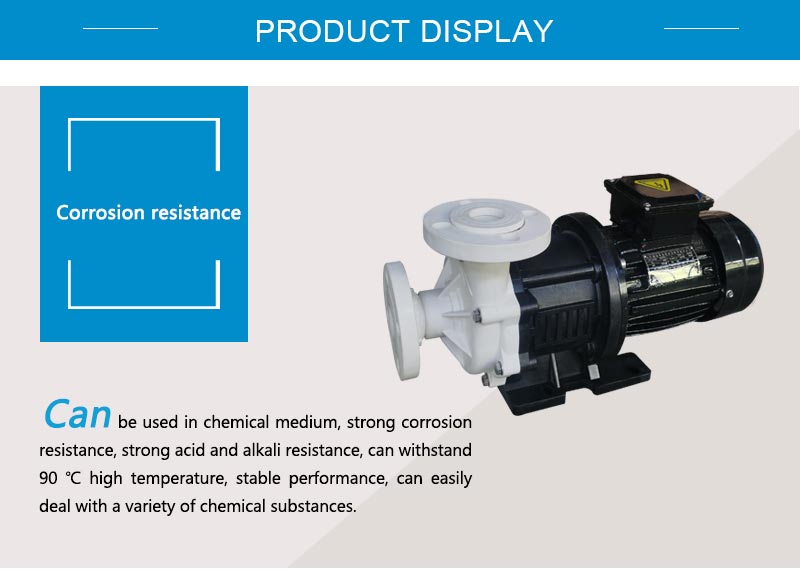

MPH series corrosion resistant magnetic drive pump, without shaft seal design, no leakage, simple structure, small size, safe and reliable.
  • item no.:

    MPH-0001
  • lead time:

    Customer date
  • product orgin:

    Anhui Tenglong pump valve manufacturing co., Ltd
  • shipping port:

    Shanghai China
  • payment:

    L/C or T/T
  • color:

    Customer color
  • Lining plastic:

    PTFE / FEP / PVDF / PFA
  • Use:

    H2SO4 / HCL / HNO3 / NaOH / HF / CH3COOH
  • description

MPH series corrosion resistant magnetic drive pump, without shaft seal design, no leakage, simple structure, small size, safe and reliable.

Anhui Tenglong pump and valve teflon lined mag drive pump main parameters:

  • Flow :150L/MIN-600L/MIN
  • Head: 8.5 m - 31 m
  • Power:0.55KW-3.7KW
  • Applicable medium: any concentration of acid, alkali, salt, organic solvents, etc.
  • Operating temperature: 0 ℃ to 90 ℃ medium density: Less then 1.3
  • Pump housing material:F-FRPP/P-PVDF
  • Interface method:Flanged connection
  • Pump shaft material:Ceramic, silicon carbide-SIC
  • Rubber material:V-Viton/E-EPDM/N-NBR
  • Frequency:5-50HZ/6-60HZ

Our company can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please dial the service hotline: +86(0086)18130250095    E-mail: tlpumps@tlpumps.com

Click here,The professional engineer will help you solve the problem.







MP series can be customized according to specific working conditions.

  • Pump housing material:F-FRPP/P-PVDF
  • Interface method:Flanged connection
  • Pump shaft material:Ceramic, silicon carbide-SIC
  • Rubber material:V-Viton/E-EPDM/N-NBR
  • Frequency:5-50HZ/6-60HZ

For other special requirements, please contact us.

Click here to get quotations and technical information immediately.




Request a free quote

related products
  • Miniature magnetic pump,Acid and alkali resistant magnetic pump MP- small acid and alkali resistant magnetic pump

    MP series non-shaft seal corrosion-resistant small magnetic drive pump is suitable for the transportation of all kinds of chemical acid and base liquids without leakage.

  • teflon lined mag drive pump TMF teflon lined mag drive pump

    Teflon lined mag drive pump and called it the fluorine plastic magnetic centrifugal pump, four fluorine, fluorine plastic magnetic drive pump, magnetic pump corrosion resistant magnetic chemical pump.

  • PW-F magnetic pump PW-F magnetic drive pump

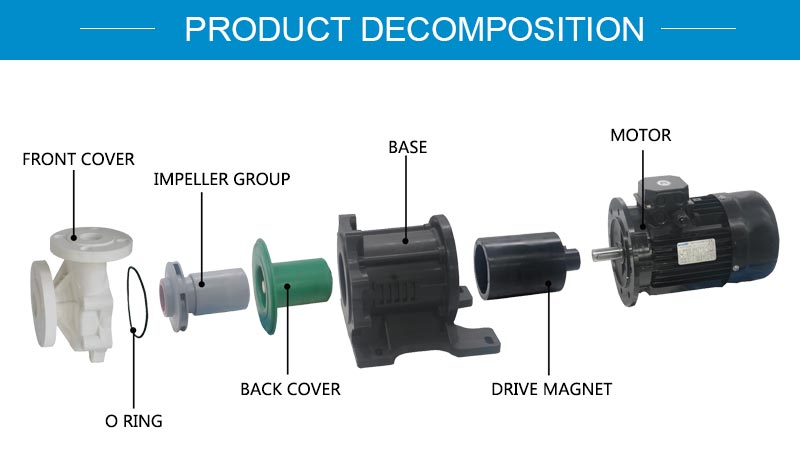

    PW-F magnetic pump is composed of pump, magnetic actuator and motor. The key component of the magnetic actuator is composed of an external magnetic rotor, an internal magnetic rotor and an isolation sleeve without magnetic conductivity. When the motor drives the external magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic material, drive the internal magnetic rotor connected with the impeller to rotate synchronously, realize the non-contact transmission of the power, and transform the dynamic seal into the static seal. Because the pump shaft and the inner magnetic rotor are completely closed by the pump body and the isolating sleeve, the problem of "running, rising, dropping and leaking" is solved thoroughly, and the hidden danger of the flammable, explosive, poisonous and harmful medium leakage through the pump seal in the oil refining and chemical industry is eliminated.
