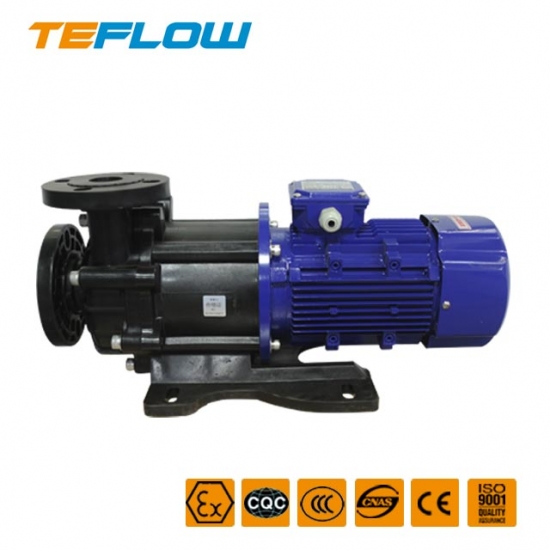

PW-F magnetic drive pump

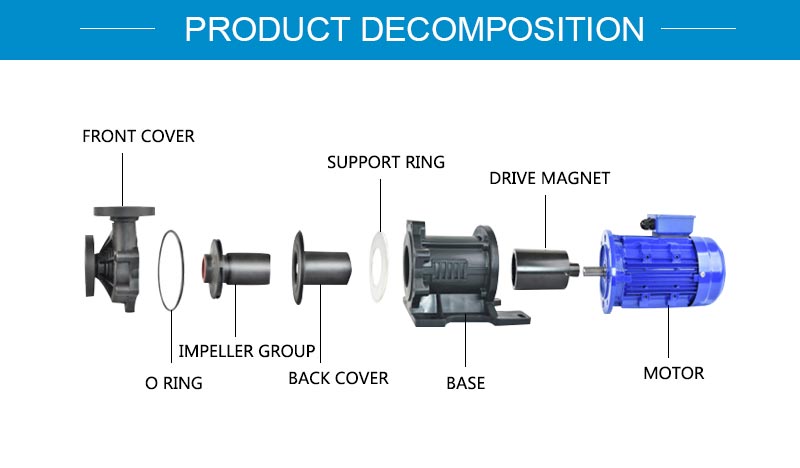

PW-F magnetic pump is composed of pump, magnetic actuator and motor. The key component of the magnetic actuator is composed of an external magnetic rotor, an internal magnetic rotor and an isolation sleeve without magnetic conductivity. When the motor drives the external magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic material, drive the internal magnetic rotor connected with the impeller to rotate synchronously, realize the non-contact transmission of the power, and transform the dynamic seal into the static seal. Because the pump shaft and the inner magnetic rotor are completely closed by the pump body and the isolating sleeve, the problem of "running, rising, dropping and leaking" is solved thoroughly, and the hidden danger of the flammable, explosive, poisonous and harmful medium leakage through the pump seal in the oil refining and chemical industry is eliminated.
  • item no.:

    PW-F-0001
  • lead time:

    25 days
  • product orgin:

    China
  • shipping port:

    Shanghai
  • payment:

    T/T L/C
  • price range:

    1-500/3000$
  • color:

    Customer color
  • description

PW-F magnetic pump is composed of pump, magnetic actuator and motor. The key components of the magnetic driver are composed of an external magnetic rotor, an internal magnetic rotor and an isolation sleeve without magnetic conductivity. When the motor drives the external magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic material, drive the internal magnetic rotor connected with the impeller to rotate synchronously, realize the non-contact transmission of the power supply, and convert the dynamic seal into the static seal. Because the pump body and the internal magnetic rotor are completely closed by the pump body and the isolation sleeve, the problem of "operation, rise, drop and leakage" is completely solved, as well as the hidden danger of flammability and explosion.

The configuration can be changed according to the actual working conditions. for details, please consult our sales department: + 86 (0086) 18130250095 E-mail:tlpumps@tlpumps.com

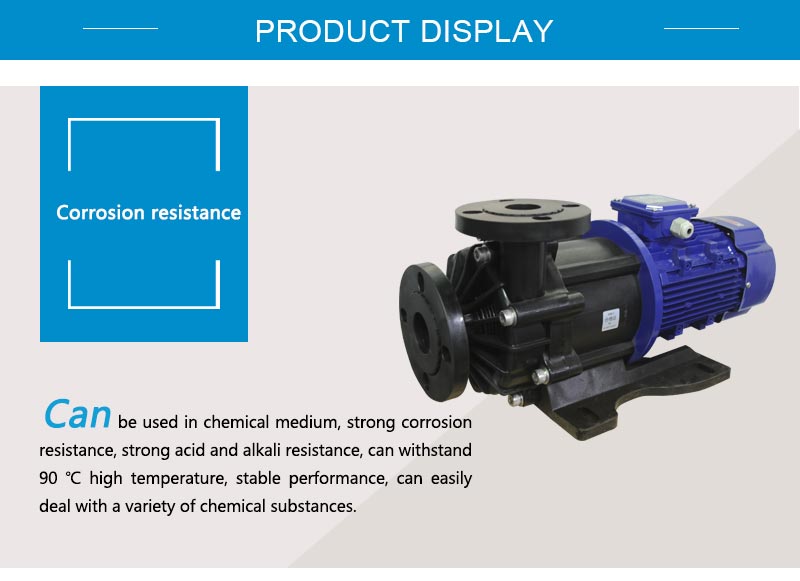

PW-F magnetic pump

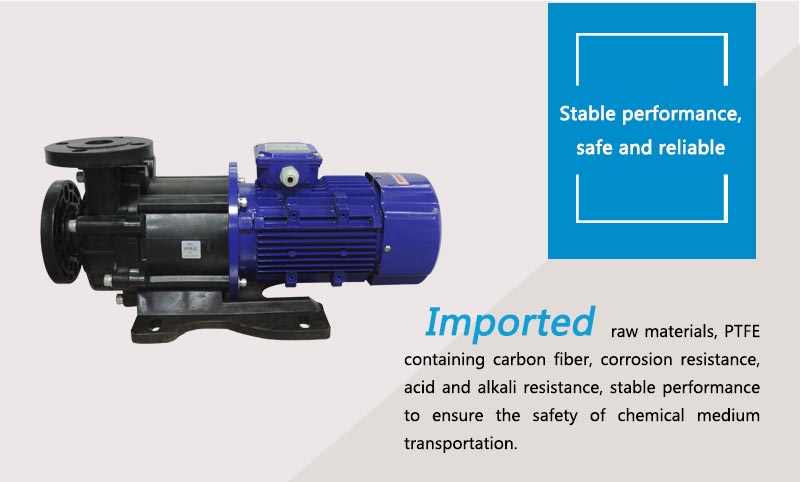

PW-F magnetic pump


PW-F magnetic drive pumpPW-F magnetic drive pump
