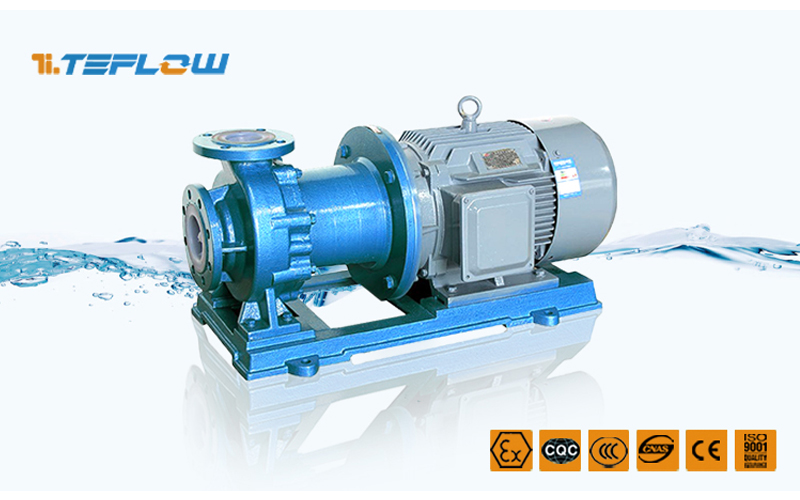

TMF horizontal leakage-free Magnetic driven salt pump

TMF horizontal leakage-free Magnetic driven salt pump is made of polytetrafluoroethylene lining material, for the transport of salt water is a very ideal solution, corrosion resistance, no leakage.

item no.:
TMF
lead time:
Customer date
product orgin:
Anhui Tenglong pump valve manufacturing co., Ltd
shipping port:
Shanghai China
payment:
L/C or T/T
color:
Customer color

Lining plastic:
PTFE / FEP / PVDF / PFA
Use:
H2SO4 / HCL / HNO3 / NaOH / HF / CH3COOH

contact now

description

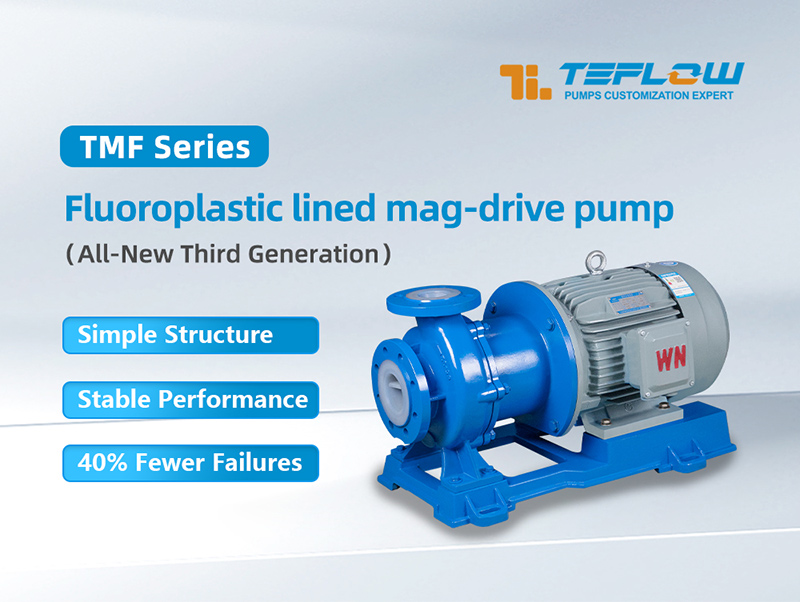

TMF horizontal leakage-free Magnetic driven salt pump

TMF horizontal leakage-free Magnetic driven salt pump is the main product of our company, and its performance is similar to CQB-F full pump body magnetic pump, IMD heavy corrosion resistant magnetic pump, are made of polytetrafluoroethylene lining, can withstand a variety of strong acids and bases, is an ideal solution for industrial chemical industry.

Anhui Tenglong pump valve teflon lined mag drive pump main parameters:

Flow : 1.6 m³/h - 200 m³/h (1600L/h-200000L/h)
Head: 5 m - 80 m(0.5bar-8bar)
Power: 1.5 kw - 55 kw(2HP-75HP)
Applicable medium: Salt water,any concentration of acid, alkali, salt, organic solvents, etc.
Operating temperature: - 20 ℃ to 150 ℃ medium density: 1.8 or less.

Our company can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please dial the service hotline: +86(0086)18130251359 E-mail: teflowpumps@tlpumps.com
