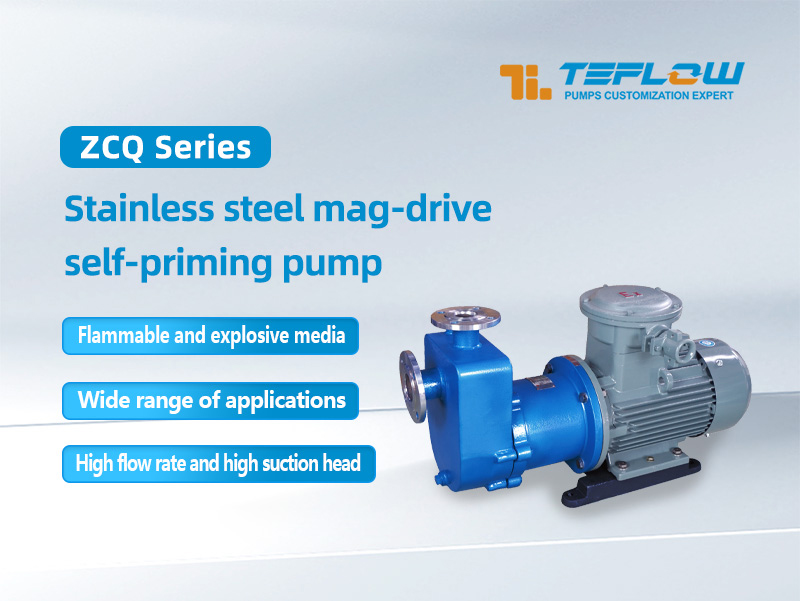

ZCQ stainless Steel Magnetic Self-priming pump

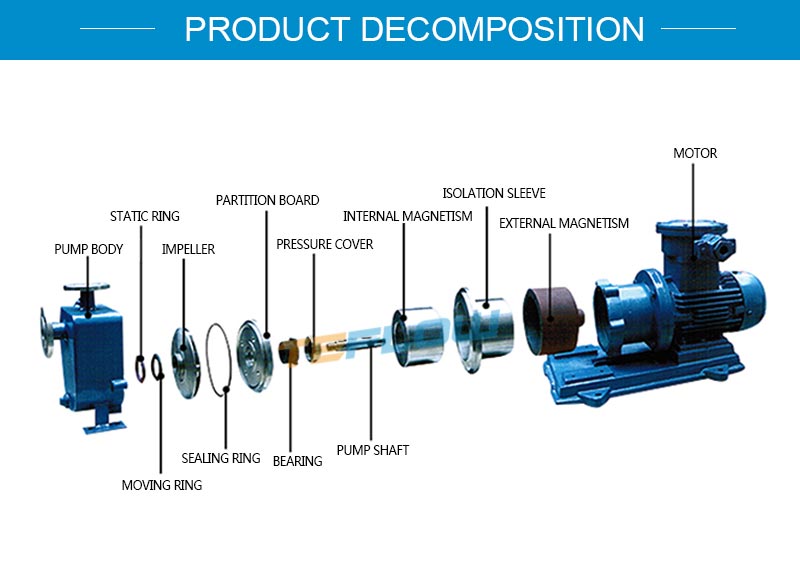

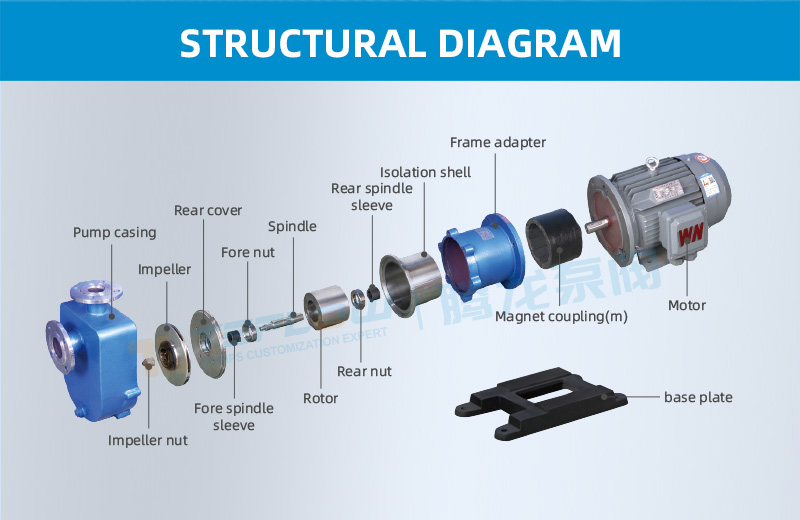

ZCQ stainless steel magnetic self-priming pump adopts magnetic drive principle and external mixing structure, no need for manual infusion before each start, can complete self-priming and realize automatic operation.
  • item no.:

    ZCQ-0001
  • lead time:

    Customer date
  • product orgin:

    Anhui Tenglong pump valve manufacturing co., Ltd
  • shipping port:

    Shanghai China
  • payment:

    L/C or T/T
  • color:

    Customer color
  • description

ZCQ stainless steel magnetic self-priming pump

ZCQ stainless steel magnetic self-priming pump adopts magnetic drive principle and external mixing structure, no need for manual infusion before each start, can complete self-priming and realize automatic operation.

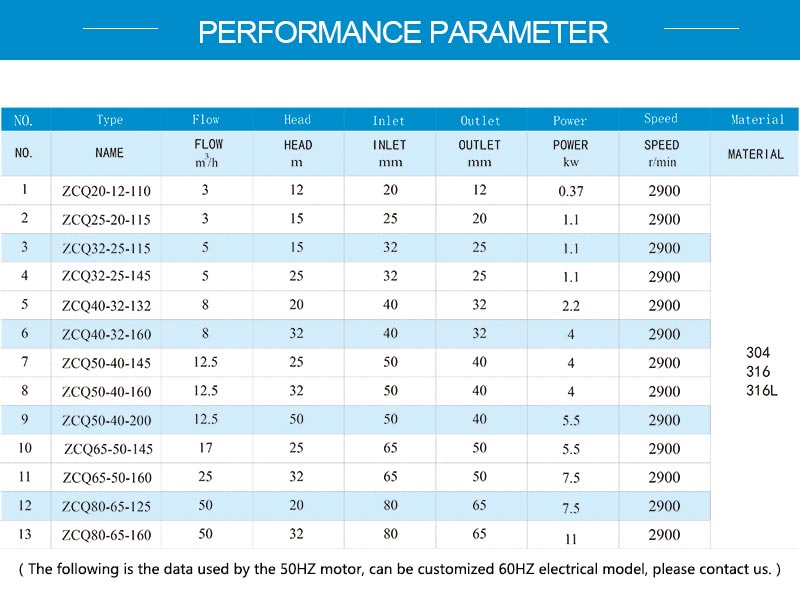

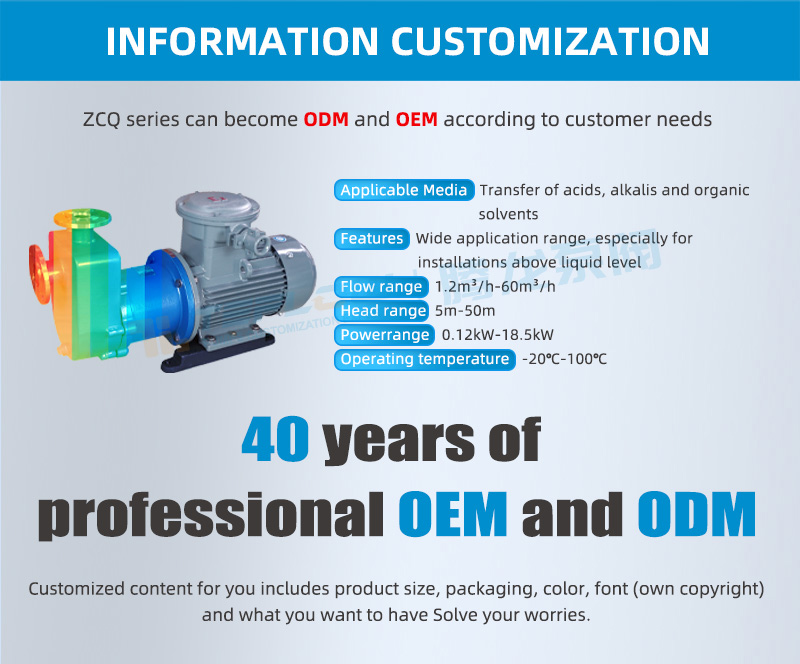

Anhui Tenglong pump valve fluorine plastic magnetic pump main parameters:


  • Flow: 4m3/h-400m3/h
  • Head:  15m-125m
  • Applicable medium:  Acid base organic solvent
  • Characteristics:  Over-flow parts are 304 and 316L, which can be equipped with single end machine seal, double end machine seal and corresponding cooling water washing device.


Our company can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please dial the service hotline: +86(0086)18130250095    E-mail: tlpumps@tlpumps.com
