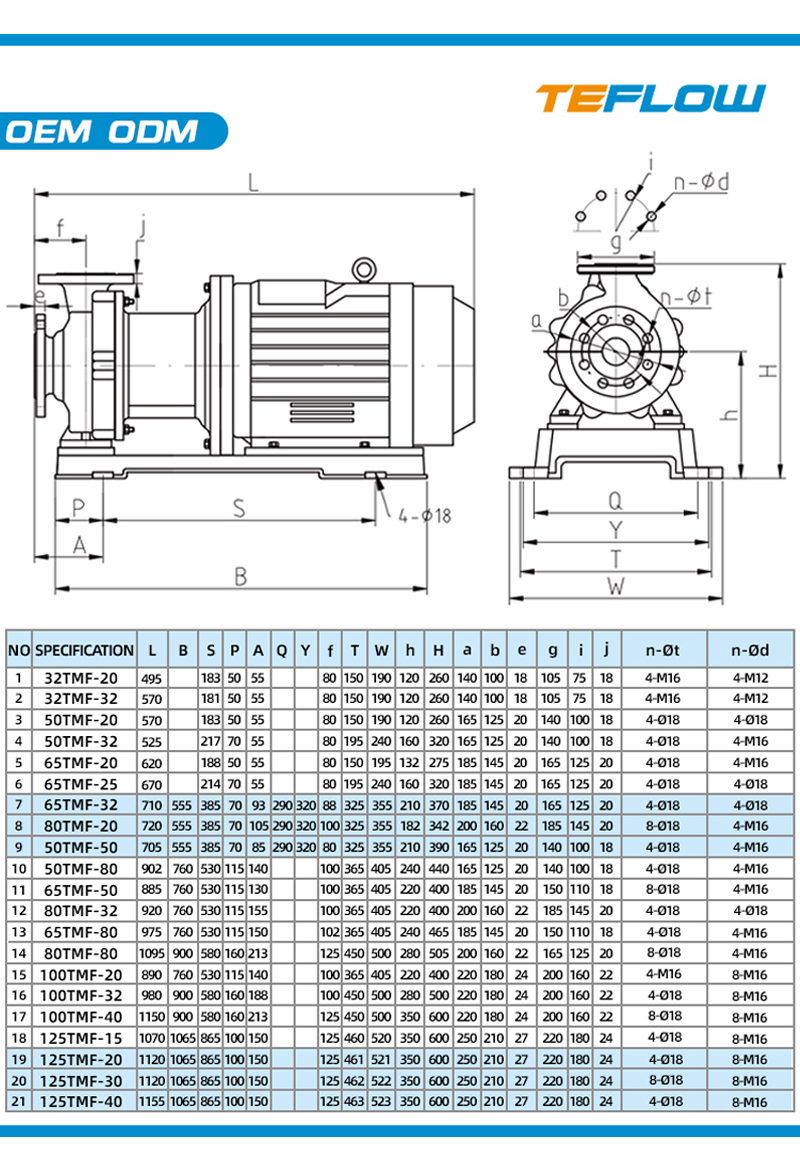

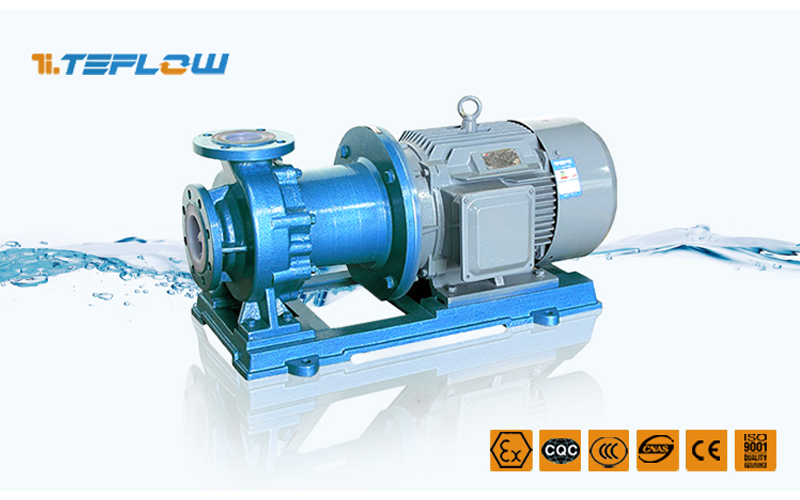

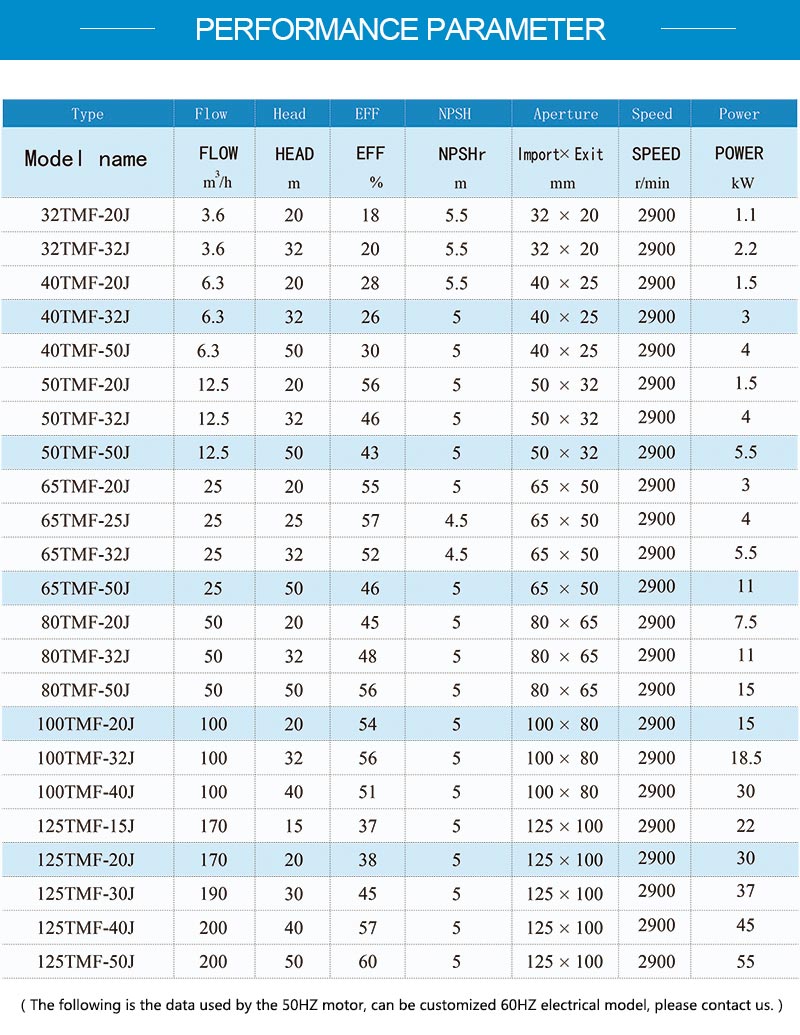

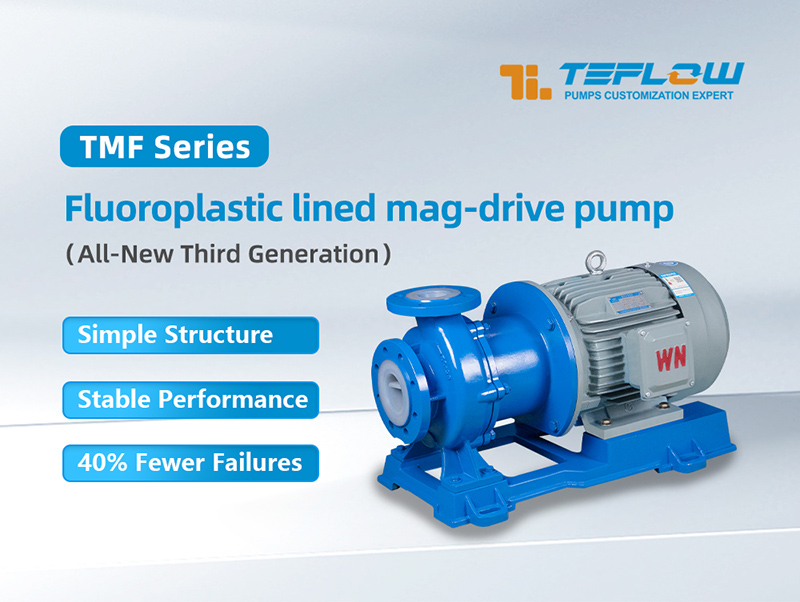

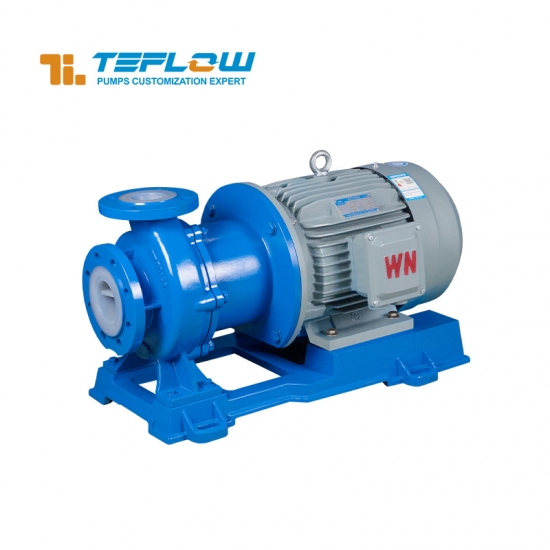

TMF-G High temperature fluorine plastic Magnetic pump

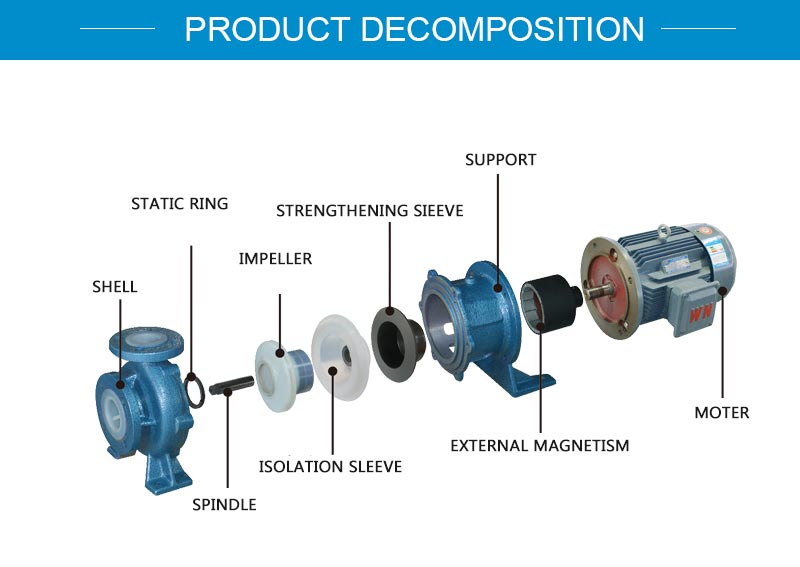

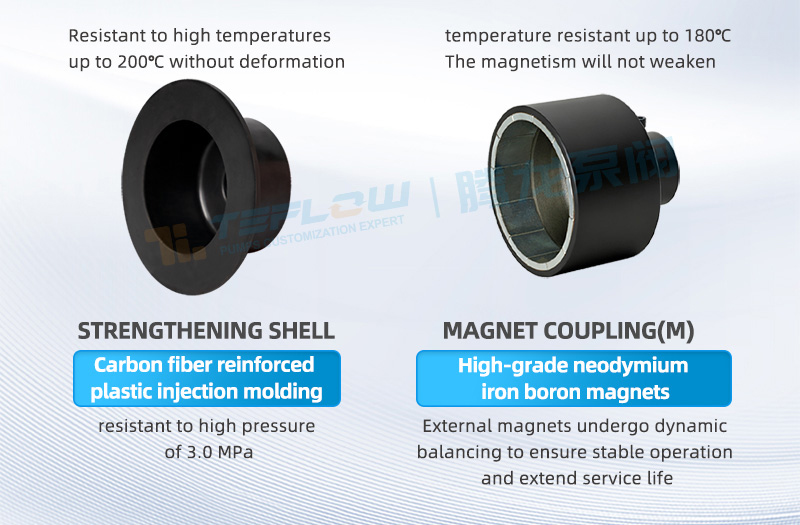

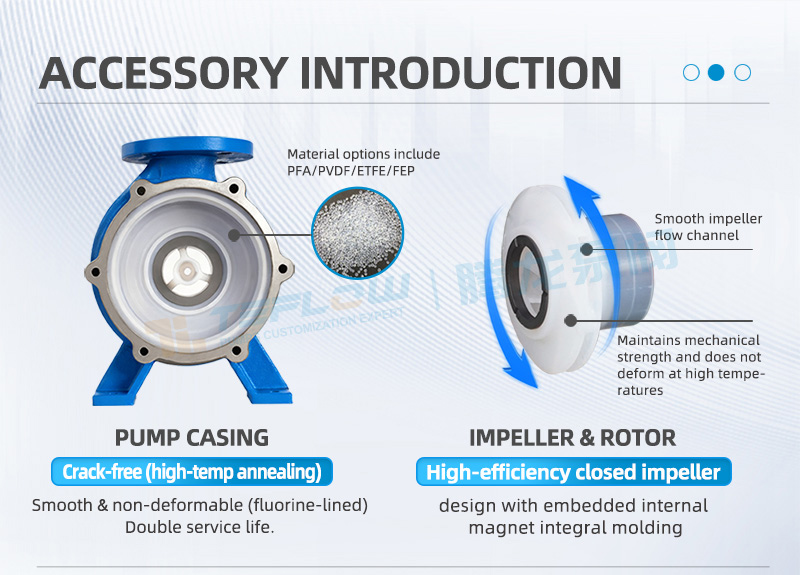

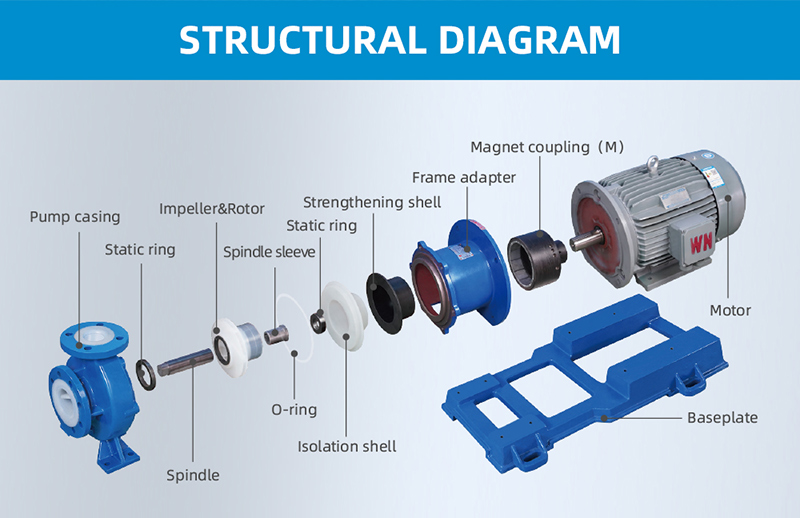

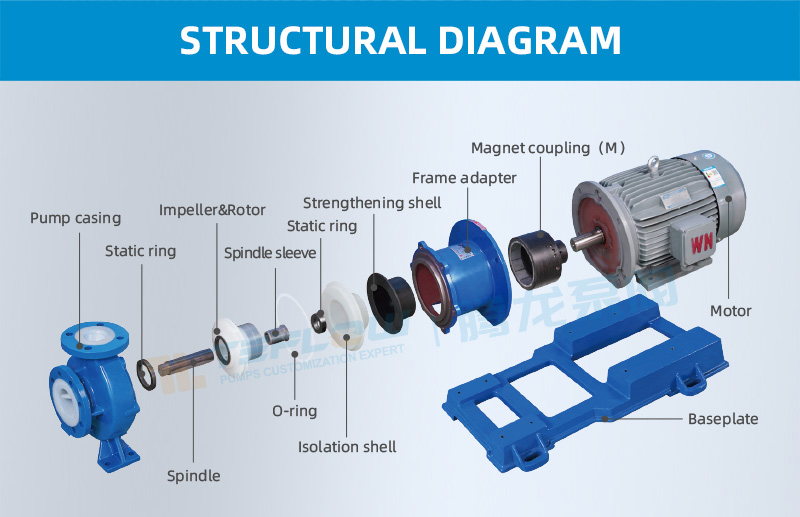

PW-F magnetic pump is composed of pump, magnetic actuator and motor. The key component of the magnetic actuator is composed of an external magnetic rotor, an internal magnetic rotor and an isolation sleeve without magnetic conductivity. When the motor drives the external magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic material, drive the internal magnetic rotor connected with the impeller to rotate synchronously, realize the non-contact transmission of the power, and transform the dynamic seal into the static seal. Because the pump shaft and the inner magnetic rotor are completely closed by the pump body and the isolating sleeve, the problem of "running, rising, dropping and leaking" is solved thoroughly, and the hidden danger of the flammable, explosive, poisonous and harmful medium leakage through the pump seal in the oil refining and chemical industry is eliminated.

IHF fluoroplastic centrifugal pump, the flow-through parts are made of acid resistant PTFE,FEP,PFA,PVDF and other plastic materials. it is an ideal choice for industrial corrosion resistance. it has mechanical seals and couplings and is driven by motors.

Is centrifugal pump is a new type of single stage single suction horizontal clear water centrifugal pump designed according to the performance and size stipulated by international standard ISO2858. The technical standard of is centrifugal pump is close to the international standard, and its versatility is wide. There are 140 kinds of specifications in the whole series, but only four kinds of shafts are used. Shafts, bearings, shaft seals, impeller fasteners, etc. of the same specification are interchangeable; there are only four types of suspension for the full range of pumps. Reach the international advanced level. It is one of the energy-saving pump products popularized in our country. The pump is rear-open, and when the pump cover and impeller are removed, the suction and discharge lines need not be removed. The suspension is equipped with two ball bearings lubricated with machine oil or grease. The pump is driven directly by the motor through an elastic coupling. The cochlear chamber, foot, inlet flange and outlet flange are cast as a whole.Water for suction and physical and chemical properties similar to water does not contain solid particles of the liquid. It is widely used in industry and agriculture and cities, drainage, fire water supply and so on.
