High Temperature Resistant Centrifugal Pump Installer

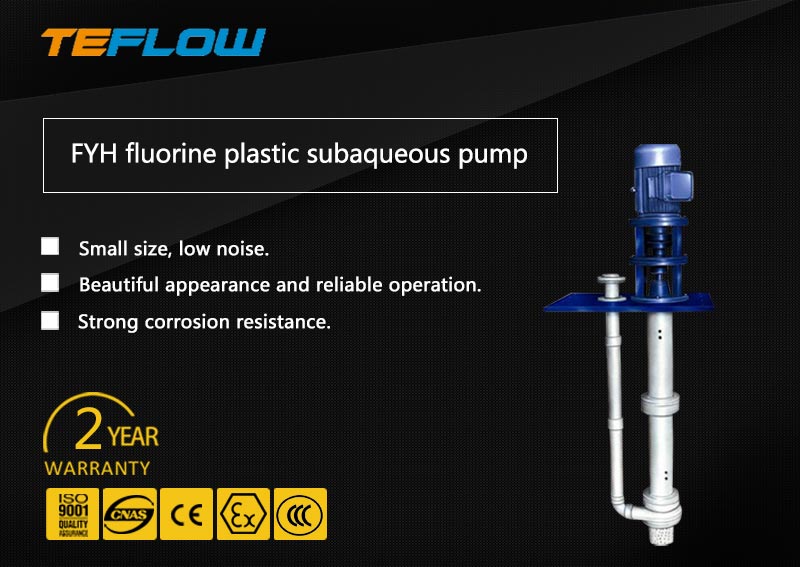

FYH vertical submersible centrifugal pump

FYH submerged pump, the working part of the pump is immersed in liquid and can be started without pump filling or vacuum, so it is easy to use.
  • item no.:

    FYH-0001
  • lead time:

    10 days
  • product orgin:

    China
  • shipping port:

    Shanghai
  • payment:

    T/T L/C
  • price range:

    1-500/3000$
  • color:

    Customer color
  • description

FYH submerged pump, the working part of the pump is immersed in liquid and can be started without pump filling or vacuum, so it is easy to use.

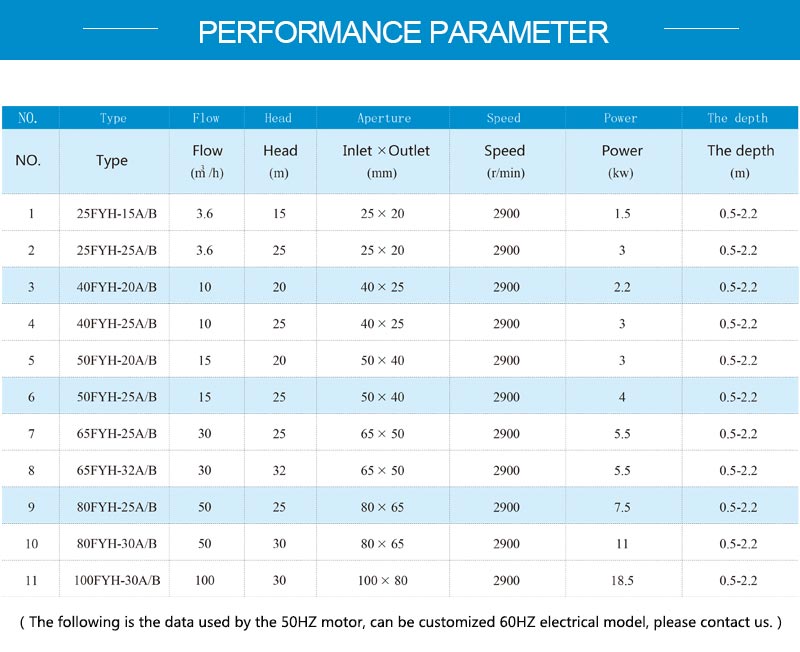

Working parameters of FYH vertical submersible pump:

  • Flow:2.8m3/h-1300m3/h
  • Head:15M-80M(1.5bar-8bar)
  • Power:1.5KW-160KW(2HP-220HP)
  • Immersion depth:0.5Meter-2.2Meter

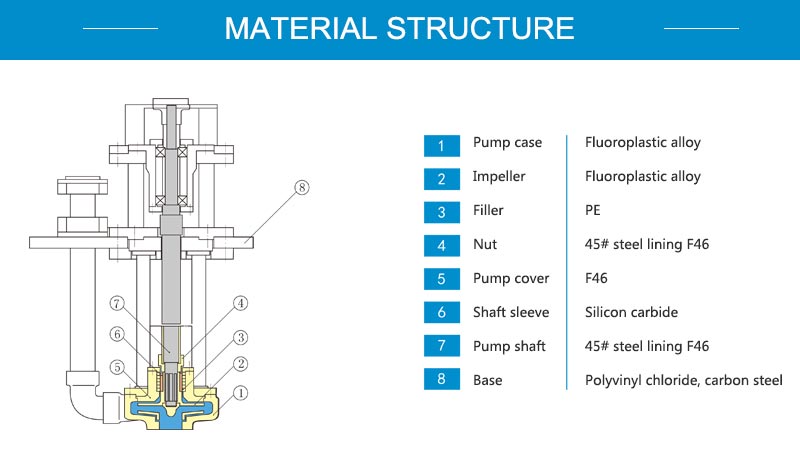

  • Wetting parts material: engineering plastics, PP , PVDF.

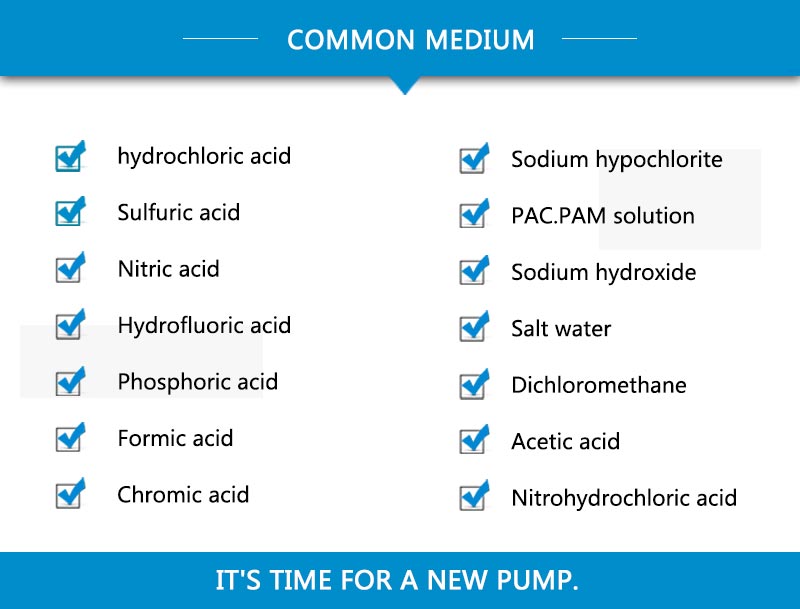

  • Applicable medium:any concentration of acid, alkali, salt, organic solvents, etc.
  • Operating temperature: 0 ℃ to 70 ℃ medium density: 1.5 or less.

The configuration can be changed according to the actual working conditions. For details, please contact our sales department at + 86 (0086) 18130250095 email: [email protected]

Vertical submersible pump


Vertical submersible pumpVertical centrifugal pump




Request a free quote

related products
  • mortar pump UHB-ZK wear-resistant and corrosion resistant mortar pump

    UHB-ZK series mortar pump adopts semi-open polymer impeller, lined with plastic layer of not less than 8mm, can be equipped with double-face circulating water machine seal, very wear-resistant, can be used for a variety of acid-base liquids containing particles and impurities.

  • ISW centrifugal pump ISW Series Horizontal Single stage cast iron, stainless steel Centrifugal water Pump

    ISW horizontal clean water pump, ideal choice for conveying clean water and physicochemical properties similar to clear water.

  • Is centrifugal pump Is horizontal clear water centrifugal pump

    Is centrifugal pump is a new type of single stage single suction horizontal clear water centrifugal pump designed according to the performance and size stipulated by international standard ISO2858. The technical standard of is centrifugal pump is close to the international standard, and its versatility is wide. There are 140 kinds of specifications in the whole series, but only four kinds of shafts are used. Shafts, bearings, shaft seals, impeller fasteners, etc. of the same specification are interchangeable; there are only four types of suspension for the full range of pumps. Reach the international advanced level. It is one of the energy-saving pump products popularized in our country. The pump is rear-open, and when the pump cover and impeller are removed, the suction and discharge lines need not be removed. The suspension is equipped with two ball bearings lubricated with machine oil or grease. The pump is driven directly by the motor through an elastic coupling. The cochlear chamber, foot, inlet flange and outlet flange are cast as a whole.Water for suction and physical and chemical properties similar to water does not contain solid particles of the liquid. It is widely used in industry and agriculture and cities, drainage, fire water supply and so on.
