Composition of TEFLOW polytetrafluoroethylene lined magnetic pump

2023/07/04

Composition of TEFLOW polytetrafluoroethylene lined magnetic pump.

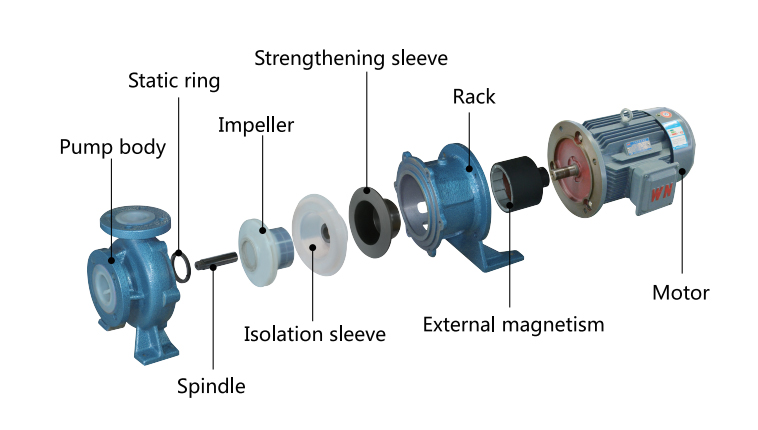

TEFLOW polytetrafluoroethylene lined magnetic pump

TEFLOW's latest design of polytetrafluoroethylene lined magnetic pump is superior to the current market magnetic pump model, simple structure, including the motor, including only 9 parts, reduce friction and prolong service life.

Pump body:HT200 cast steel lined with PTFE,FEP,PFA and other corrosion resistant plastics.
Static ring:Use of silicon carbide, pressureless sintered silicon carbide, ceramics, etc.
Spindle:Use of silicon carbide, pressureless sintered silicon carbide, ceramics, etc.
Impeller:Closed structure, can be customized semi-open, PTFE,FEP,PFA, and internal magnetic rotor combination.
Isolation sleeve:Corrosion resistant plastic
Strengthening sleeve:Polyether ether ketone material, better than alloy wear resistance, rigid, replace metal materials, eliminate internal magnetic vortex, will not heat.
Rack:HT200 cast steel material, pressure and wear resistance
External magnetism:ND-Fe-B external magnetic, high temperature conditions do not refuse, the service life of more than two years.
Motor:TEFLOW accepts electrical customization from any country, even if it is a test sample.
