UHB-ZK corrosion-resistant and wear-resistant mortar pump

2020/03/17

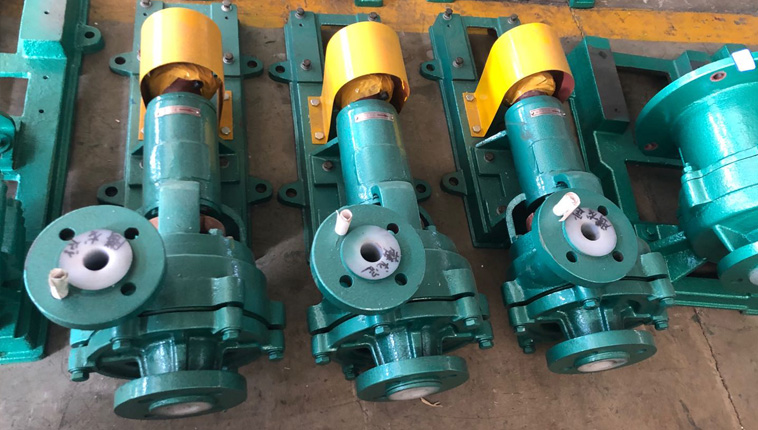

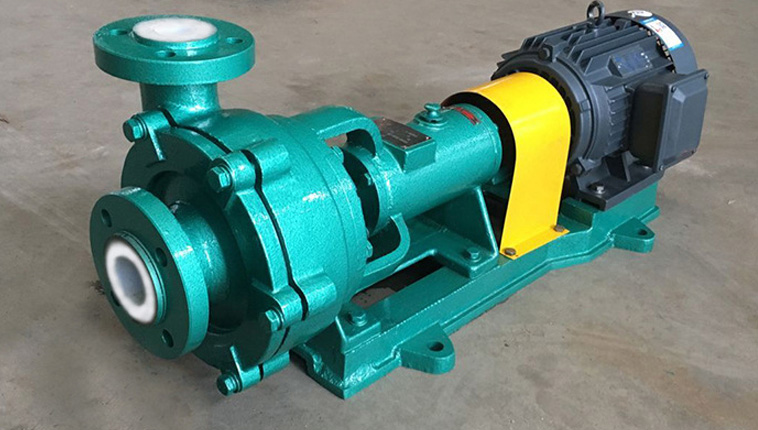

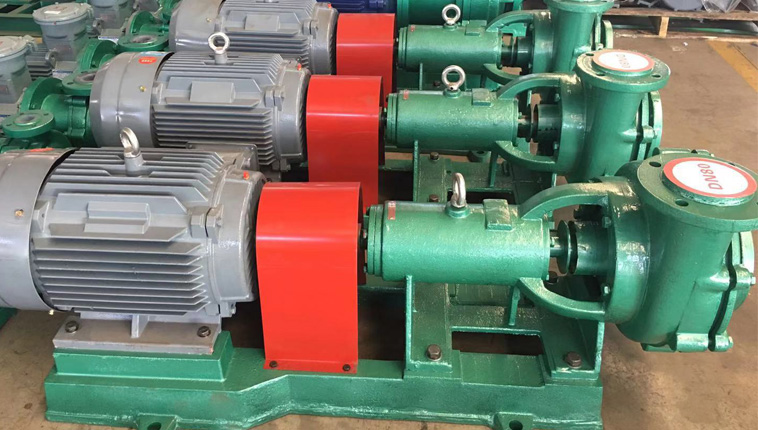

UHB-ZK corrosion-resistant and wear-resistant mortar pump desulphurization pump


UHB-ZK corrosion-resistant and wear-resistant mortar pump series products are designed to be corrosive and contain fine particles or crystalline medium. corrosion-resistant and wear-resistant mortar pump is a kind of centrifugal pump. The over-current parts are made of ultra-high molecular weight polyethylene (UHMW-PE) lined with steel, and the resistance of ultra-high molecular weight polyethylene (UHMWPE).
The head of grindability bureau plastic. The pump shell, impeller and pump cover of the mortar pump are made of HT200 lined UHMW-PE material, the impeller nut and gasket are made of ultra high molecular weight polyethylene (UHMW-PE), the shaft seal is made of fluorine rubber, the shaft sleeve is made of silicon carbide, and the bracket is made of HT200 material.
Made of quality. The semi-open impeller is used in the mortar pump, which plays a good role in pressurizing the filter press. The excellent corrosion resistant pump can withstand all kinds of corrosive medium acid, alkali, salt and organic solvent in a certain temperature and concentration range. Noise-free ultra-high molecular weight polyethylene (UHMWPE) has the highest impact energy absorption in plastics and good noise suppression, thus minimizing the noise of liquid flow production in the process of transportation.


Impeller and pump body design:
In general, the impeller of the impeller uses a parallel cover plate, and after the slurry enters the impeller, an external vortex is formed from the center to both sides at the outlet, which seriously wears the front and rear cover plate and lining of the impeller, which is the main reason for the short life of the overflowing parts. The impeller designed by the pump forms a concave shape at the outlet, so that the speed of the front and rear cover plates on both sides of the impeller is greater than the middle speed, and the slurry is divided into two streams of fluid at the outlet and rotates to the center, forcing the particles to flow to the center, resulting in an internal whirlpool, so that the concentration on both sides is reduced, thus reducing the wear of the pump body flow channel and both sides of the wall.


Transmission mode of mortar pump:
The transmission modes of impurity pump are direct coupling (elastic coupling, hydraulic coupler) and indirect transmission (V-belt, reducer). In addition, it can also be adjusted by frequency conversion device and SCR device. Among them, the elastic coupling and V-drive drive are convenient to disassemble.
