Comprehensive Guide to Repairing Fluoroplastic Magnetic Pumps: 8 Steps to Simplify Maintenance

2024/10/30

Fluoroplastic magnetic pumps are widely used in the chemical, pharmaceutical, and environmental protection industries due to their excellent corrosion resistance and leak-free characteristics. However, like any mechanical equipment, they may encounter faults or require regular maintenance during long-term operation. This article provides a detailed guide on repairing fluoroplastic magnetic pumps, outlining 8 steps to make maintenance simple and efficient.

Step 1: Shutdown and Safety Measures

Before starting any repair work, ensure the pump is shut down and disconnected from the power supply. Place warning signs to prevent others from operating the equipment accidentally. Wear protective gloves and safety goggles to avoid contact with corrosive liquids or inhalation of harmful gases.

Step 2: Draining and Cleaning

Drain any residual liquid from the pump and clean it with water or an appropriate solvent. Take care not to damage the internal components of the pump during cleaning. Once cleaned, allow the pump to dry to ensure safety and convenience for subsequent operations.

Step 3: Disassemble the Pump Casing

Use suitable tools to disassemble the pump casing. Handle with care to avoid damaging the pump body and internal components. Record the position and order of each part during disassembly for reference during reassembly.

Step 4: Inspect Impeller and Bearings

Check the impeller and bearings for wear. If the impeller shows significant wear or deformation, it should be replaced promptly. Check if the bearings operate smoothly; if there is noise or jamming, replace the bearings.

Step 5: Inspect Magnetic Coupling

The magnetic coupling is the core component of the fluoroplastic magnetic pump. Check if the magnetic coupling’s magnetism has weakened or if there are any wear or cracks. Replace the coupling if necessary to ensure the pump's normal operation.

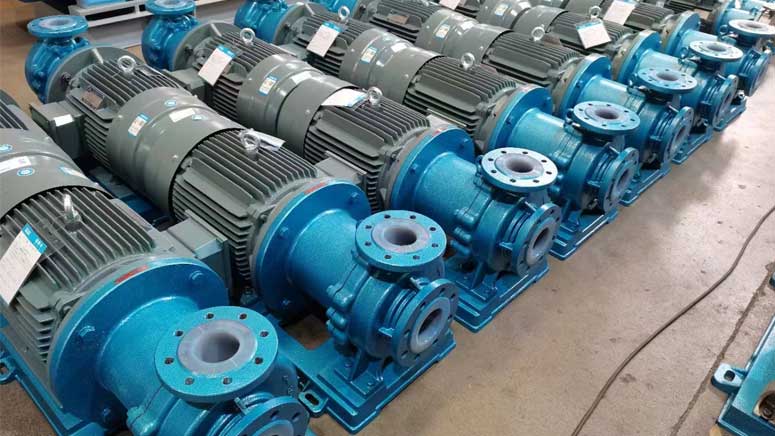

Fluoroplastic Magnetic Pumps

Step 6: Replace Seals

密封件对于防止泄漏至关重要。检查密封件是否磨损并更换任何老化或损坏的密封件。选择与泵型号相匹配的密封件,以确保适当的密封性能。

第 7 步:重新组装泵

按照记录的顺序重新组装零件。确保每个连接都已正确拧紧,以避免太松或太紧。特别注意均匀拧紧泵壳螺栓,以保证泵体密封良好。

第 8 步:试运行和检查

重新组装后,执行试运行。在启动泵之前,手动旋转泵轴以确保没有障碍物。在试运行期间,观察是否有任何异常的噪音、振动或泄漏。如果试运行正常,泵可以恢复使用。

氟塑料磁力泵的维护和维修并不复杂。通过遵循这 8 个步骤,您可以确保泵的长期稳定运行。定期维护不仅可以延长泵的使用寿命,还可以提高生产效率并减少停机时间。我们希望这份全面的指南能为您提供实用指导,使您的氟塑料磁力泵保持最佳状态。
